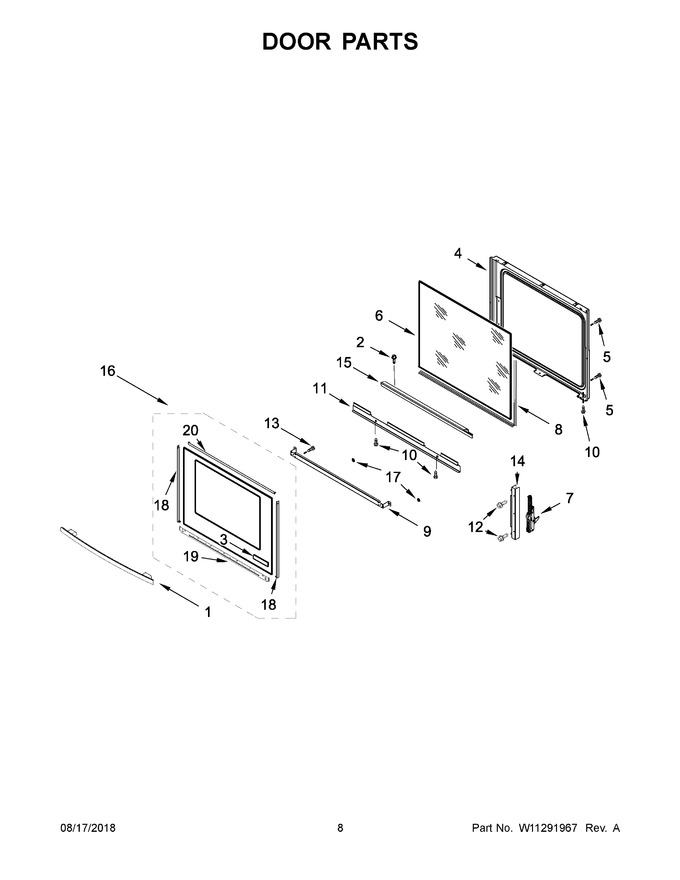

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10550998 | Assembly, Door Handle (black) |
|
- | |||||
| 2 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 3 | WPW10214168 | Badge (black) (Replaces: W10190724) |
|
$ 77.36 | |||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | W11339500 | Glass, Inner (Replaces: W10813616) |
|
$ 154.05 | |||||
| 7 | W10885517 | Hinge, Slow Close |
|
$ 100.59 | |||||
| 8 | W11673273 | Spacer, Glass (Replaces: W10813142) |
|
Immediately | $ 27.94 | ||||
| 9 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 35.93 | ||||
| 10 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 11 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 159.49 | ||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 13 | WP8533988 | Screw (Replaces: W11091878) |
|
Immediately | $ 7.90 | ||||
| 14 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 68.57 | ||||
| 15 | W11251351 | Scoop, Door (black) (Replaces: W10613791) |
|
Immediately | $ 125.70 | ||||
| 16 | WPW10541892 | Assembly, Outer Door (black) (Replaces: W10541892) |
|
$ 371.45 | |||||
| 17 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 | ||||
| 18 | W10634236 | Trim, Door Side (black) |
|
- | |||||
| 19 | W10541912 | Bracket, Lower Glass |
|
- | |||||
| 20 | W10634234 | Door, Trim Top |
|
- |
