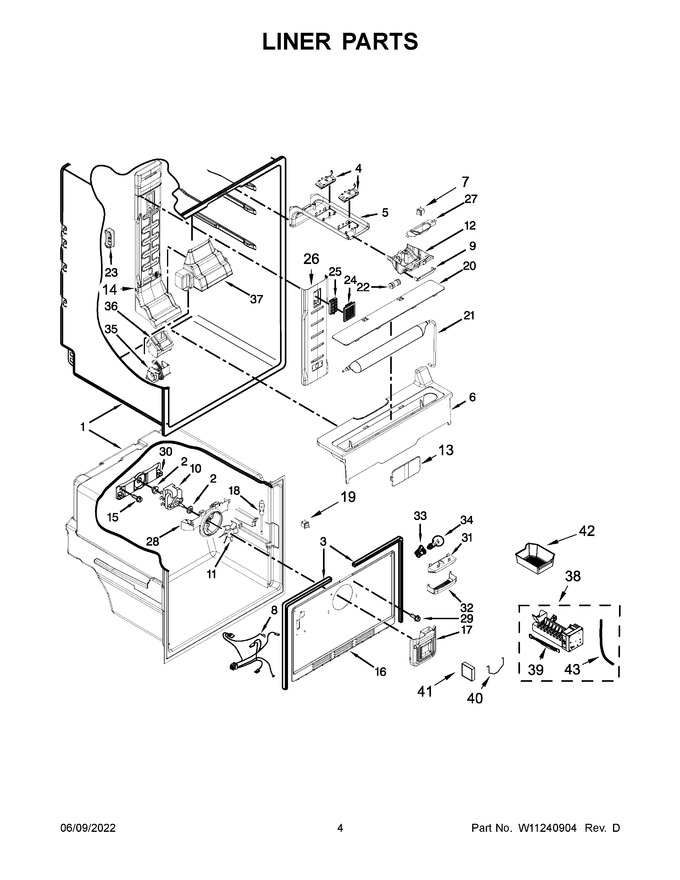

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10468762) |
|
Immediately | $ 86.12 | ||||
| 4 | W10865838 | Assembly, Led Light (Replaces: W10536362) |
|
$ 180.62 | |||||
| 5 | W10469878 | Housing, Light |
|
Immediately | $ 109.83 | ||||
| 6 | W10798439 | Container, Water Reservoir |
|
$ 161.93 | |||||
| 7 | W11384469 | Switch, Rocker Arm (Replaces: W11428639) |
|
Immediately | $ 35.18 | ||||
| 8 | WPW10487766 | Assembly, Freezer Wire (Replaces: W10487766) |
|
Immediately | $ 73.28 | ||||
| 9 | W10459385 | Cover, Control Housing |
|
$ 70.43 | |||||
| 10 | W11818487 | Motor, Fan (Replaces: W10464673) |
|
$ 107.45 | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | WPW10453580 | Housing, Control (Replaces: W10453580) |
|
$ 87.80 | |||||
| 13 | W10336009 | Cup, Screw |
|
$ 69.66 | |||||
| 14 | W11508229 | Assembly, Multiflow |
|
$ 63.18 | |||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 16 | W10300900 | Cover, Evaporator |
|
$ 217.94 | |||||
| 17 | W11227949 | Tower, Freezer (Replaces: W10317182) |
|
$ 160.80 | |||||
| 18 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 19 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 33.57 | ||||
| 20 | W10413160 | Cover, Water Reservoir |
|
$ 101.83 | |||||
| 21 | W10801011 | Reservoir, Water (Replaces: W10568672) |
|
Immediately | $ 161.72 | ||||
| 22 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 33.29 | ||||
| 23 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 79.54 | ||||
| 24 | WPW10330850 | Grille, Air Filter Bottom (Replaces: W10330850) |
|
$ 33.80 | |||||
| 25 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 12.91 | ||||
| 26 | WPW10356895 | Tower, Multiflow Air (Replaces: W10356895) |
|
$ 145.34 | |||||
| 27 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 91.21 | |||||
| 28 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 29.22 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 30 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 67.90 | ||||
| 31 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 81.96 | ||||
| 32 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 85.81 | ||||
| 33 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 32.24 | ||||
| 34 | W10914194 | Bulb, Light (Replaces: W10809513) |
|
Immediately | $ 7.56 | ||||
| 35 | W11808478 | Damper, Electronic Control (Replaces: W10745484) |
|
Immediately | $ 125.38 | ||||
| 36 | W11133099 | Cover, Damper Housing (Replaces: W10474774) |
|
Immediately | $ 95.78 | ||||
| 37 | WPW10314204 | Housing, Damper (Replaces: W10314204) |
|
$ 91.85 | |||||
| 38 | W11542654 | Assembly, Icemaker (Replaces: W11381373) |
|
Immediately | $ 247.41 | ||||
| 39 | W11643622 | Assembly, Ice Maker Wire (Replaces: W11257307) |
|
$ 25.63 | |||||
| 40 | WPW10474785 | Arm, Shut Off (Replaces: W10474785) |
|
Immediately | $ 54.22 | ||||
| 41 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 7.94 | ||||
| 42 | WPW10378263 | Pan, Ice (Replaces: W10378263) |
|
Immediately | $ 50.00 | ||||
| 43 | WPW10496649 | Tube, Water (Replaces: W10496649) |
|
Immediately | $ 111.00 |
