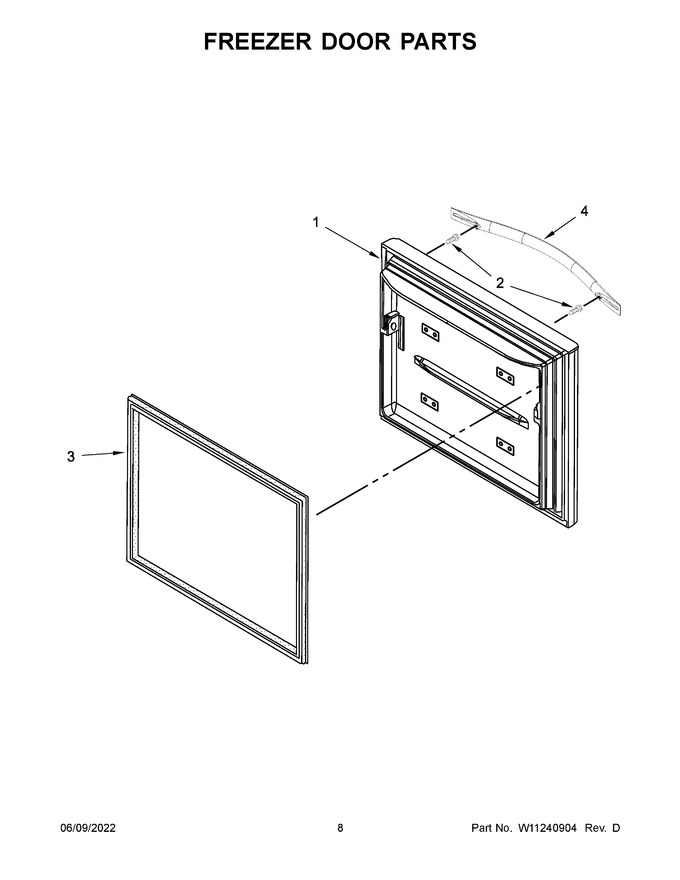

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10353182		Door, Freezer (includes Items 2 & 3) (white)   (Replaces: W10353182)				$ 548.60
2	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.69
3	W10460611		Gasket, Door (beige)   (Replaces: W11464962)			Immediately	$ 273.77
4	W11125499		Assembly, Handle (white)				$ 157.73
1A	LW10413530		Door, Freezer (includes Items 2 & 3) (black)   (Replaces: W10413530)				$ 446.88
1B	LW10865766		Door, Freezer (includes Items 2 & 3) (black Stainless)   (Replaces: W10865766)				$ 750.93
1C	LW10858419		Door, Freezer (includes Items 2 & 3) (stainless)   (Replaces: W10858419)				$ 756.26
3A	W11625017		Gasket, Door (black)   (Replaces: W11464961)				$ 305.72
3B	W10836785		Gasket, Door (grey)   (Replaces: W11464960)				$ 250.46
4A	W11125500		Assembly, Handle (black)				$ 157.73
4B	W11199708		Assembly, Handle (black Stainless)   (Replaces: W11125496)				$ 165.59
4C	W11199711		Assembly, Handle (stainless)   (Replaces: W11125495)			Immediately	$ 171.40
