SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts

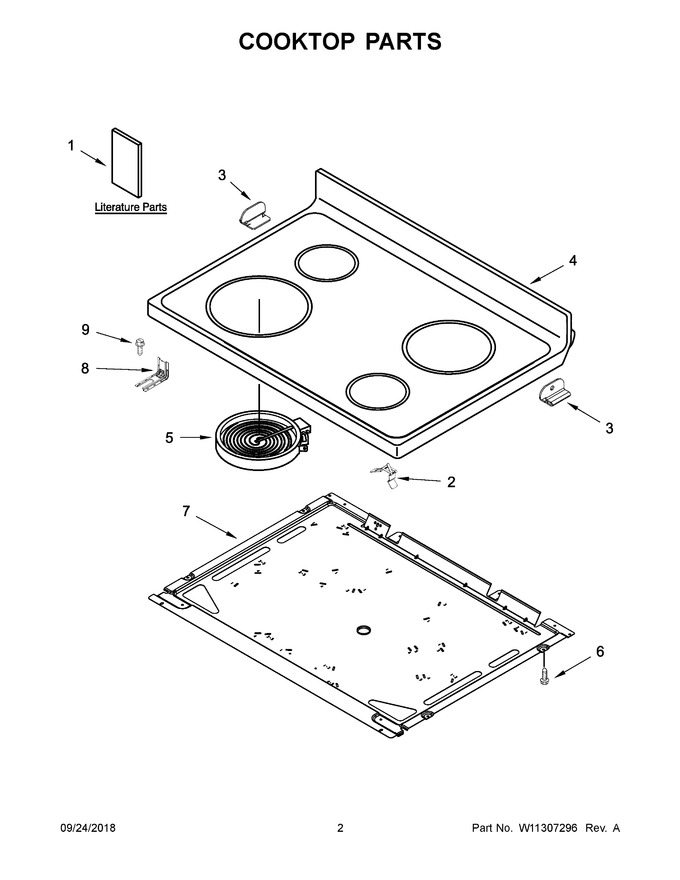

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11047681		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
3	W10607641		Bracket, Cooktop (left)				$ 30.17
4	W10245805		Cooktop (black)   (Replaces: W10380657)				$ 498.45
5	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 132.01
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
8	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 25.69
9	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
1A	W10719734		Use And Care Guide, English		Appelez-nous	-
1B	W10432689		Tech Sheet (english)		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
5A	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: W10248261)			Immediately	$ 203.06
5B	W11047722		Element (2500w) (right Front)   (Replaces: W10248262)			Immediately	$ 119.21
NI	W11134602		Harness, Cooktop (right)				$ 172.54
NI	W11134601		Harness, Cooktop (left)				$ 173.39
NI	W11172524		Harness, Sensor				$ 195.47
NI	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 24.32
NI	W10183541		Clip, Spring Steel		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11219898		Harness, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
