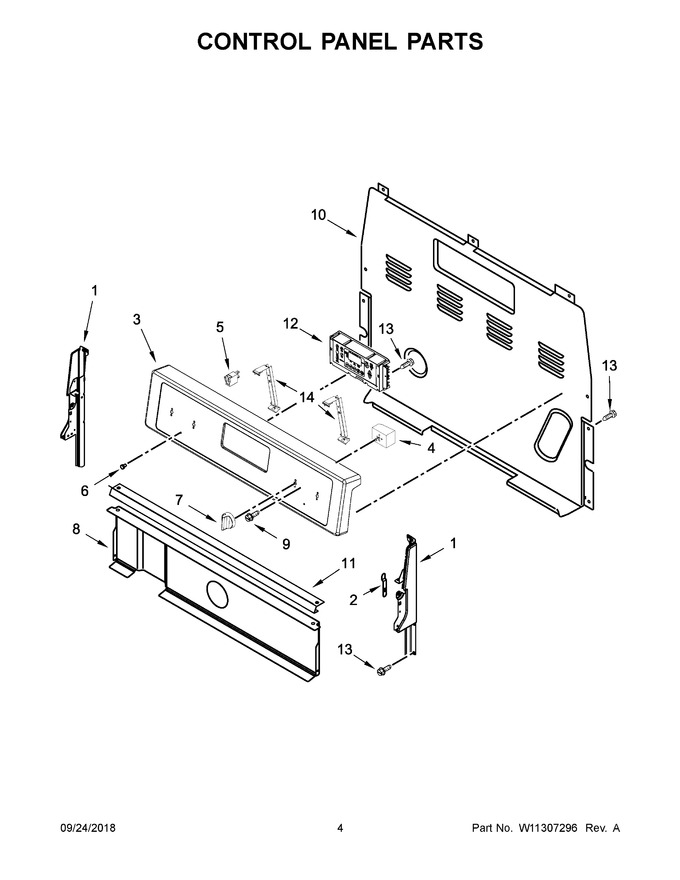

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
Immediately | $ 138.45 | ||||
| 2 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 3 | W11251222 | Console, Assembly (stainless) (Replaces: W11135015) |
|
$ 316.76 | |||||
| 4 | WPW10434452 | Switch, Infinite (dual) (left Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W10836470 | Knob (black) (Replaces: W10676213) |
|
Immediately | $ 34.28 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 12 | W11122543 | Control, Range (lcc95) (stainless) (Replaces: W10887917) |
|
$ 452.69 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 76.33 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
Immediately | $ 40.65 | ||||
| 4A | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4B | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 81.46 |
