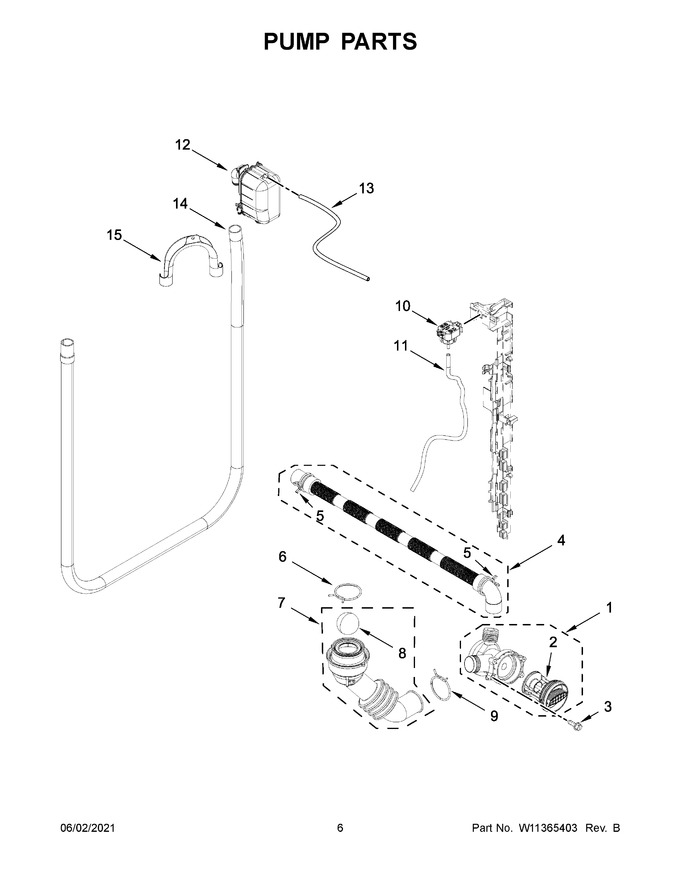

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11046209 | Pump (Replaces: W10846320) |
|
$ 265.62 | |||||
| 2 | W10506380 | Filter, Pump |
|
$ 89.42 | |||||
| 3 | W10512064 | Screw |
|
$ 12.12 | |||||
| 4 | W11281837 | Hose, Pump - Equalization |
|
$ 32.14 | |||||
| 5 | 251971304004 | Clamp |
|
$ 23.09 | |||||
| 6 | 251971303031 | Clamp |
|
- | |||||
| 7 | 461971409193 | Hose, Tub - Pump |
|
Immediately | $ 34.06 | ||||
| 8 | 461974081951 | Ball, Eco |
|
$ 79.79 | |||||
| 9 | 251971304005 | Clamp |
|
$ 20.78 | |||||
| 10 | W11044866 | Sensor, Pressure (Replaces: W10597311) |
|
Immediately | $ 43.38 | ||||
| 11 | W10676317 | Hose, Pressostat |
|
Immediately | $ 30.68 | ||||
| 12 | W11579389 | Tank, Equalization (Replaces: W10853581) |
|
Immediately | $ 103.84 | ||||
| 13 | W10596633 | Hose, Equalization - Pump |
|
$ 28.27 | |||||
| 14 | 461974646281 | Hose, Drain |
|
$ 27.04 | |||||
| 15 | W10887723 | U-bend |
|
$ 13.27 |
