01 - Cover Sheet
02 - Console And Cabinet Parts
03 - Door Parts
04 - Pump Parts

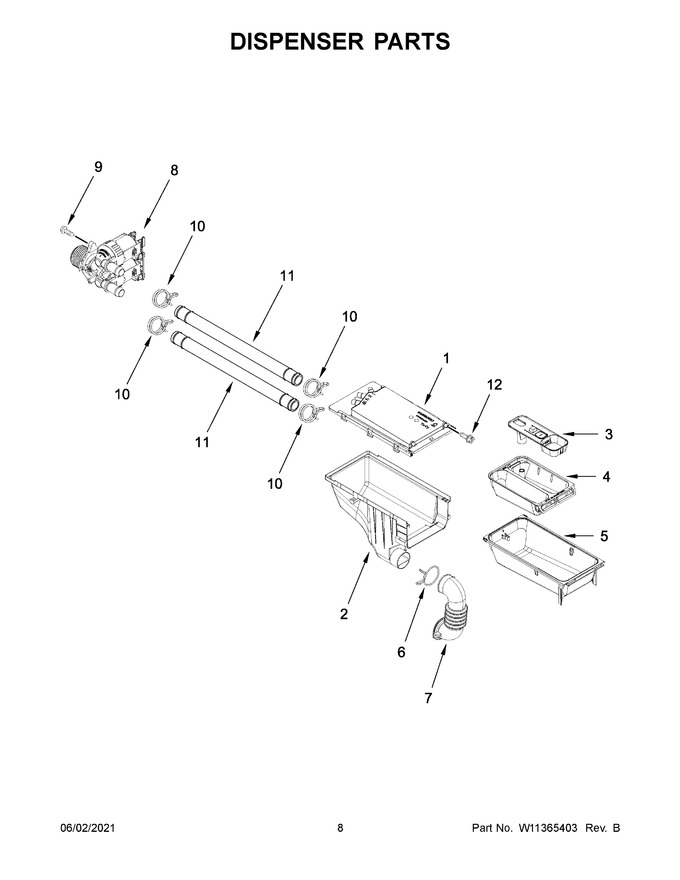

05 - Dispenser Parts
06 - Tub And Drive Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11661891 | Dispenser, Lid (assembly) (Replaces: W10580651) |
|
Immediately | $ 47.89 | ||||
| 2 | W10580618 | Housing, Dispenser (Replaces: W10580668) |
|
Immediately | $ 215.13 | ||||
| 3 | W10580677 | Siphon, Softener (only) |
|
Immediately | $ 13.29 | ||||
| 4 | W10868280 | Drawer, Pre-wash Detergent (no Bleach) |
|
$ 207.86 | |||||
| 5 | W10868281 | Drawer, He Detergent (only) |
|
Immediately | $ 215.13 | ||||
| 6 | 251971300008 | Clamp |
|
$ 23.29 | |||||
| 7 | 461971409182 | Hose, Dispenser - Tub |
|
$ 30.56 | |||||
| 8 | W11044834 | Valve, Double (Replaces: W10846345) |
|
Immediately | $ 189.64 | ||||
| 9 | 251912400003 | Screw |
|
- | |||||
| 10 | WP489503 | Clamp (Replaces: 251971304018) |
|
Immediately | $ 10.16 | ||||
| 11 | W10887741 | Hose |
|
Immediately | $ 27.04 | ||||
| 12 | 251925500045 | Screw |
|
Immediately | $ 22.15 |
