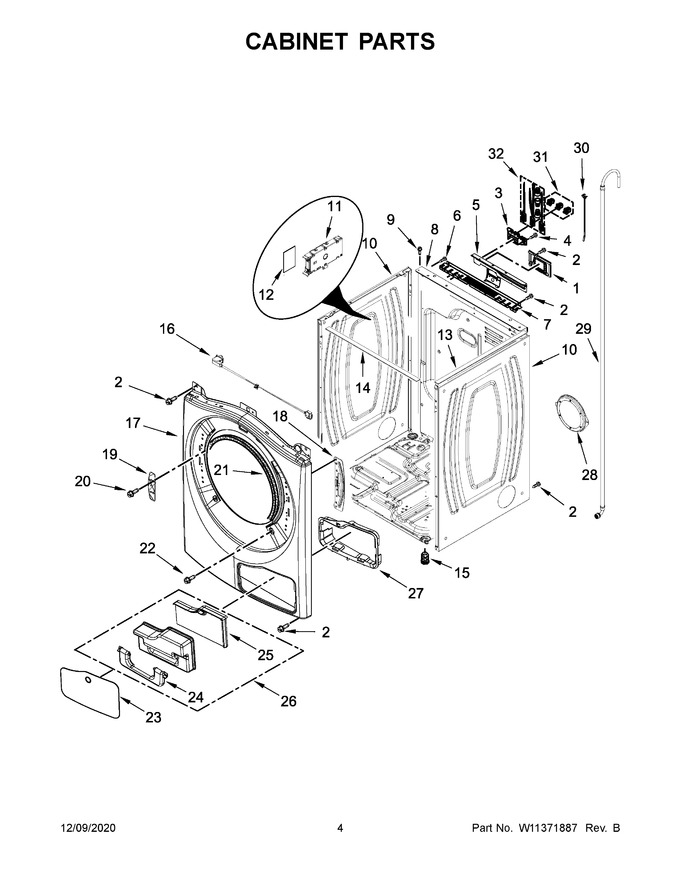

03 - Cabinet Parts
04 - Base Parts
05 - Bulkhead Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662367 | Cover, Terminal Block (Replaces: W11394868) |
|
$ 65.84 | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 3 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 4 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 5 | W10668463 | Bracket, Terminal Cross Bar |
|
- | |||||
| 6 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 7 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 41.56 | |||||
| 8 | W10524494 | Panel, Rear |
|
$ 269.31 | |||||
| 9 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 10 | W11315726 | Panel, Side (chrome Shadow) (Replaces: W11177570) |
|
Immediately | $ 289.48 | ||||
| 11 | W11419213 | Appliance Control Unit (acu) (Replaces: W11314903) |
|
- | |||||
| 12 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 21.38 | |||||
| 13 | W10686117 | Seal - Strip |
|
- | |||||
| 14 | W10608849 | Seal - Strip |
|
$ 22.64 | |||||
| 15 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 16 | W11427601 | Door Switch, Snap In (Replaces: W10569114) |
|
$ 68.88 | |||||
| 17 | W11347433 | Front Panel (chrome Shadow) (Replaces: W11134299) |
|
- | |||||
| 18 | W11310030 | Bracket, Hinge (Replaces: W11084215) |
|
$ 22.24 | |||||
| 19 | W11310031 | Strike, Door (Replaces: W11126752) |
|
$ 26.15 | |||||
| 20 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 21 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 22 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 23 | W11108732 | Door, Secondary Lint (chrome Shadow) |
|
$ 85.60 | |||||
| 24 | W10739609 | Assembly, Handle - Secondary Lint |
|
$ 77.30 | |||||
| 25 | W11199484 | Filter, Secondary Lint (Replaces: W10739605) |
|
Immediately | $ 95.49 | ||||
| 26 | W10897401 | Box Assembly, Secondary Lint (Replaces: W10802056) |
|
Immediately | $ 256.96 | ||||
| 27 | W11194427 | Bezel, Secondary Lint Assembly (chrome Shadow) |
|
- | |||||
| 28 | W10810480 | Guard, Fan |
|
$ 18.81 | |||||
| 29 | W11169712 | Hose, Outlet (Replaces: W10705660) |
|
Immediately | $ 83.77 | ||||
| 30 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 30.09 | |||||
| 31 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 32 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 |
