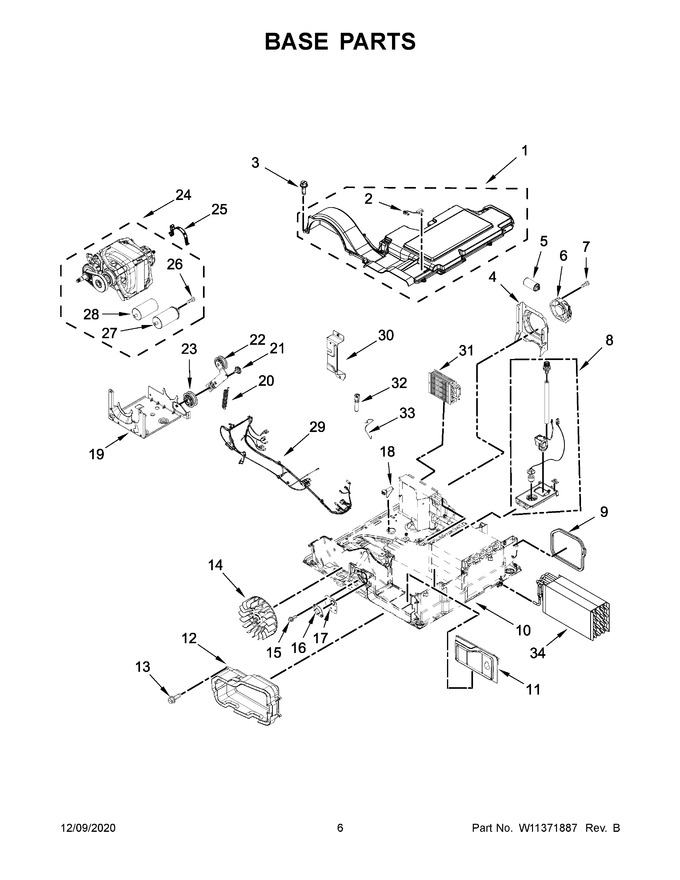

04 - Base Parts
05 - Bulkhead Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10608831 | Cover, Heat Exchange |
|
$ 206.75 | |||||
| 2 | W10651558 | Switch, Lint Screen |
|
$ 126.98 | |||||
| 3 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 4 | W10837311 | Housing, Auxillary Fan |
|
- | |||||
| 5 | W10724418 | Capacitor, Compressor |
|
$ 70.77 | |||||
| 6 | W11342035 | Fan, Compressor (Replaces: W11175941) |
|
Immediately | $ 381.19 | ||||
| 7 | W10709795 | Screw (Replaces: 12990515) |
|
$ 12.41 | |||||
| 8 | W11551760 | Heat Pump Assembly (Replaces: W11177749) |
|
Immediately | $ 342.51 | ||||
| 9 | W10459416 | Seal Strip |
|
$ 33.79 | |||||
| 10 | W11368564 | Base Assembly |
|
$ 934.99 | |||||
| 11 | W11715723 | Filter, Service (Replaces: W10754439) |
|
Immediately | $ 79.19 | ||||
| 12 | W10897399 | Lint Housing Extension (Replaces: W10647273) |
|
Immediately | $ 101.28 | ||||
| 13 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 14 | W11573366 | Blower Wheel (Replaces: W10364994) |
|
Immediately | $ 68.46 | ||||
| 15 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 16 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 17 | W10574749 | Bracket, Thermister |
|
- | |||||
| 18 | WPW10467289 | Sensor, Temperature (Replaces: W10467289) |
|
Immediately | $ 43.02 | ||||
| 19 | W10578065 | Bracket, Motor |
|
$ 160.03 | |||||
| 20 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 21 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 22 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 32.20 | ||||
| 23 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 29.26 | ||||
| 24 | W11209428 | Assembly, Motor Capacitor (Replaces: W10651995) |
|
Immediately | $ 364.97 | ||||
| 25 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 26 | W10759923 | Nut (Replaces: W10604214) |
|
$ 7.52 | |||||
| 27 | W10724414 | Capacitor, Motor Run |
|
$ 86.28 | |||||
| 28 | W11846999 | Capacitor, Motor Start (Replaces: W10442513) |
|
Immediately | $ 30.56 | ||||
| 29 | W11109746 | Wiring Harness (lower) |
|
$ 230.01 | |||||
| 30 | W10645092 | Bracket, Valve |
|
$ 93.85 | |||||
| 31 | W11406521 | Auxilllary Assembly (Replaces: W11333431) |
|
$ 150.15 | |||||
| 32 | W11176272 | Sensor Assembly, Water Level |
|
$ 220.23 | |||||
| 33 | W10374142 | Spring, Ntc |
|
$ 24.35 | |||||
| 34 | W11406520 | Evaporator Assembly (Replaces: W11333422) |
|
$ 272.33 |
