01 - Cover Sheet

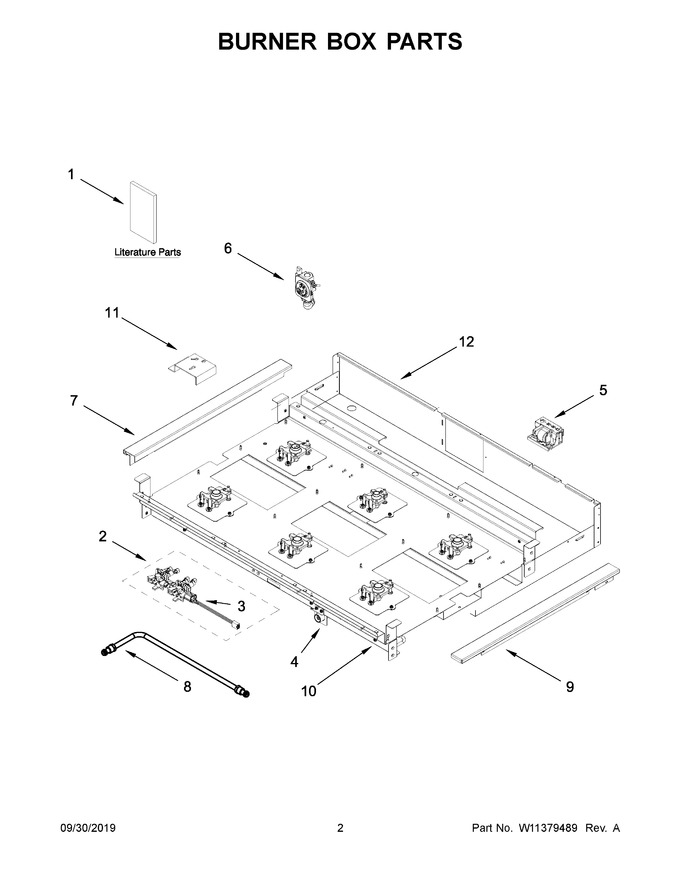

02 - Burner Box Parts


03 - Cooktop And Burner Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11179810		Guide, Use & Care		Appelez-nous	-
2	W11381267		Assembly, Valve Manifold (left Front And Left Rear)   (Replaces: W11183720)				$ 323.86
3	W11344433		Switch, Harness   (Replaces: W10903728)				$ 172.40
4	W11121199		Bracket, Manifold		Appelez-nous	-
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 73.44
6	W11106948		Regulator, Pressure   (Replaces: W10449140)			Immediately	$ 215.01
7	W11339740		Main Trim, Left   (Replaces: W11047750)			Immediately	$ 159.36
8	W11339379		Tube, Manifold Supply (left)   (Replaces: W10892347)				$ 161.52
9	W11339741		Main Trim, Right   (Replaces: W11047752)			Immediately	$ 159.36
10	N/P		Assembly, Burner Box (not Serviced)		Appelez-nous	-
11	8285790		Bracket, Mounting Orifice				$ 77.27
12	N/P		Box, Burner (not Serviced)		Appelez-nous	-
1A	W11179813		Instructions, Installation		Appelez-nous	-
1B	W11202393		Diagram, Wiring		Appelez-nous	-
1C	W11202295		Sheet, Tech		Appelez-nous	-
2A	W11381269		Assembly, Valve Manifold (center Front And Center Rear)   (Replaces: W11036612)				$ 310.10
2B	W11378578		Assembly, Valve Manifold (right Front And Right Rear)   (Replaces: W10892994)			Immediately	$ 210.66
8A	W11339377		Tube, Manifold Supply (center)   (Replaces: W10892445)		Appelez-nous	-
8B	W11337056		Tube, Manifold Supply (right)   (Replaces: W10892450)				$ 159.68
NI	W11502161		Kit, Lp Conversion   (Replaces: W11238042)			Immediately	$ 71.29
NI	W10624584		Cord, Power				$ 170.61
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11213527		Harness, Cooktop				$ 176.35
NI	W11038934		Harness, Jumper				$ 168.21

    View Diagram in Separate Window       Print Part List
