SELECT A DIAGRAM

01 - Cover Sheet


02 - Burner Box Parts

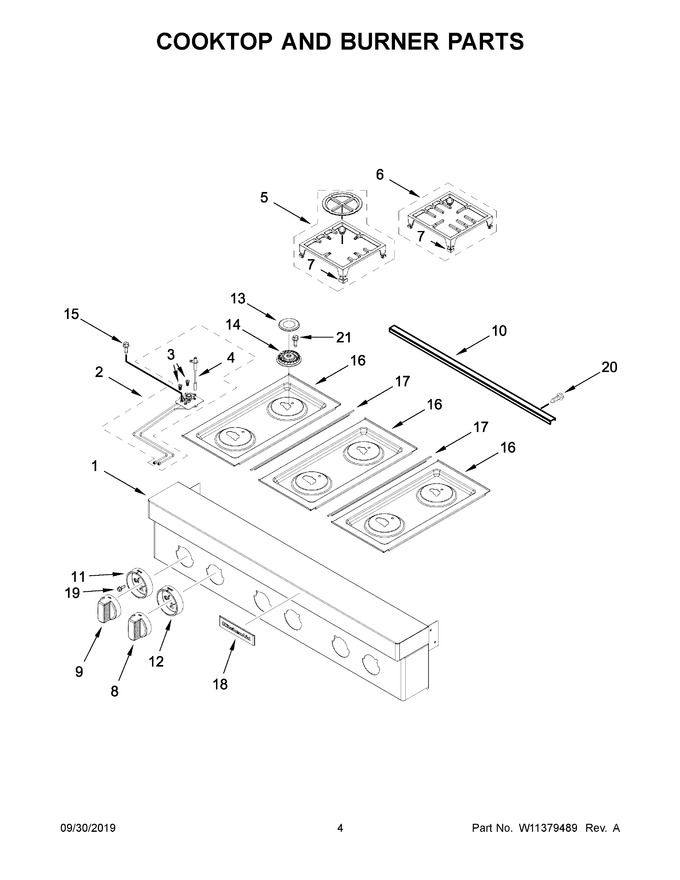

03 - Cooktop And Burner Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11785262		Panel, Console   (Replaces: W10878402)				$ 828.32
2	W11337062		Assembly, Orifice Holder (left Front, Right Front)   (Replaces: W10892771)			Immediately	$ 115.43
3	W11643164		Orifice, Main (17.4k) (left Front, Right Front)   (Replaces: W10892422)			Immediately	$ 58.69
4	W11580024		Igniter (left Front, Right Front)   (Replaces: W11238758)			Immediately	$ 21.29
5	W11380124		Burner, Grate (with Wok Ring)   (Replaces: W11291183)			Immediately	$ 180.17
6	W11380128		Burner, Grate   (Replaces: W11291179)			Immediately	$ 180.94
7	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 11.31
8	W11380562		Knob, Dual (stainless)   (Replaces: W10883172)				$ 71.32
9	W11380561		Knob, Single (stainless)   (Replaces: W10912166)			Immediately	$ 73.08
10	W11355760		Trim, Island				$ 221.54
11	W11380145		Bezel (rear Burners)   (Replaces: W10883433)				$ 58.56
12	W11380146		Bezel (front Burners)   (Replaces: W10881642)				$ 58.56
13	W11344538		Cap, Burner (black (includes 6))   (Replaces: W11121390)			Immediately	$ 154.29
14	W11344539		Spreader, Flame (high) (left Front, Right Front)   (Replaces: W10891746)			Immediately	$ 127.04
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
16	W11344755		Panel, Cooktop (black (left))   (Replaces: W11038235)				$ 179.78
17	W10271524		Trim, T-strip (black)				$ 191.11
18	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 68.58
19	W11674763		Screw   (Replaces: W10919387)				$ 13.28
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
21	W11643628		Screw (8-18 X 1") (left Front, Right Front)   (Replaces: W11323261)				$ 13.28
14A	W11344742		Spreader, Flame (low) (left Rear, Center Front, Right Rear)   (Replaces: W10891974)			Immediately	$ 120.71
14B	W11344746		Spreader, Flame (aux) (center Rear)   (Replaces: W10891978)			Immediately	$ 119.88
16A	W11344757		Panel, Cooktop (black (center))   (Replaces: W11038257)				$ 179.78
16B	W11344761		Panel, Cooktop (black (right))   (Replaces: W11038248)				$ 179.78
21A	W11678580		Screw (8-18 X 1/2") (left Rear, Center Front, Center Rear, Right Rear)   (Replaces: W11323309)				$ 13.30
2A	W11378585		Assembly, Orifice Holder (left Rear And Right Rear)   (Replaces: W10892484)				$ 110.90
2B	W11381271		Assembly, Orifice Holder (center Front)   (Replaces: W11159468)			Immediately	$ 105.34
2C	W11381273		Assembly, Orifice Holder (center Rear)   (Replaces: W10892767)			Immediately	$ 111.06
3A	W11672510		Orifice, Main (15k) (left Rear, Center Front, Right Rear)   (Replaces: W10892419)			Immediately	$ 97.08
3B	W11661909		Orifice, Simmer (2.6k) (left Front, Right Front)   (Replaces: W10892435)			Immediately	$ 67.52
3C	W10892438		Orifice, Simmer (5k) (center Rear)				$ 89.87
4A	W11628654		Igniter (left Rear, Center Front, Center Rear, Right Rear)   (Replaces: W10892340)			Immediately	$ 49.43
