01 - Cover Sheet

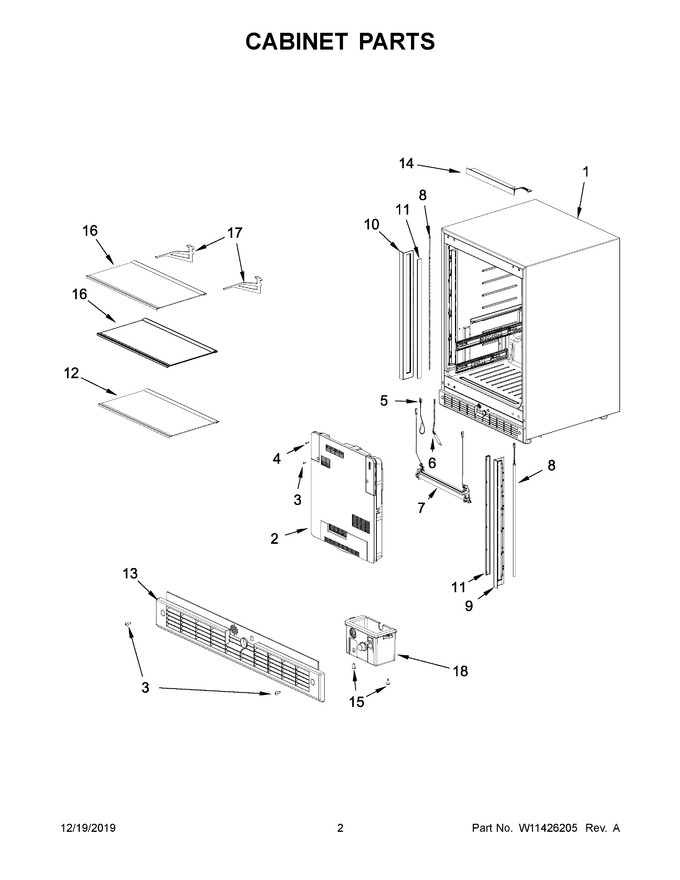

02 - Cabinet Parts
03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Cabinet (not A Service Part) |
|
- | |||||
| 2 | W11633775 | Assembly, Evaporator Cover (includes Fan Motor, Damper And Sensor) (Replaces: W11407975) |
|
$ 339.97 | |||||
| 3 | W11675284 | Screw (Replaces: W11371095) |
|
$ 14.35 | |||||
| 4 | W11375760 | Screw |
|
- | |||||
| 5 | W11266076 | Sensor, Defrost (Replaces: W11263884) |
|
$ 109.50 | |||||
| 6 | W11359415 | Fuse, Temperature |
|
$ 98.35 | |||||
| 7 | W11359416 | Defrost Holder And Heater |
|
- | |||||
| 8 | W11359423 | Assembly, Led |
|
$ 184.58 | |||||
| 9 | W11359424 | Cover, Led (right) (Replaces: W11424553) |
|
$ 98.12 | |||||
| 10 | W11395483 | Cover, Led (left) |
|
$ 90.87 | |||||
| 11 | W11359428 | Cover, Led |
|
$ 97.03 | |||||
| 12 | W11407979 | Assembly, Glass Tray |
|
- | |||||
| 13 | W11360218 | Kick, Plate |
|
$ 109.15 | |||||
| 14 | W11424751 | Assembly, Control |
|
- | |||||
| 15 | W11371097 | Screw |
|
- | |||||
| 16 | W11432725 | Assembly, Glass Tray (Replaces: W11359431) |
|
- | |||||
| 17 | W11359432 | Holder, Shelf |
|
$ 134.61 | |||||
| 18 | W11359433 | Assembly, Switch Box |
|
$ 137.60 |
