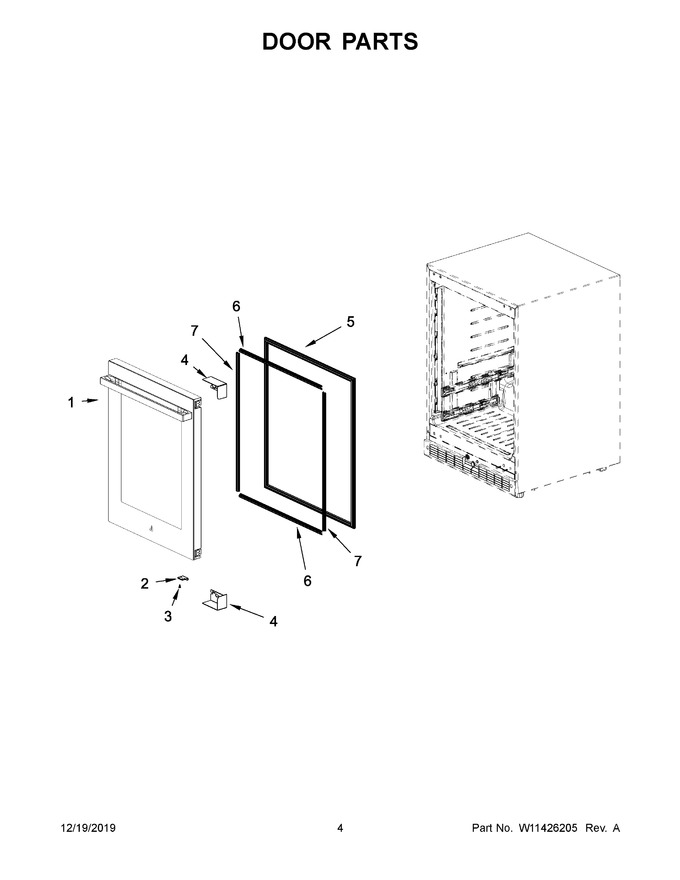

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11360655 | Door Assembly (left Hinge) |
|
$ 1,419.70 | |||||
| 2 | W11360659 | Plate, Push (Replaces: W11360703) |
|
$ 34.14 | |||||
| 3 | W11675284 | Screw (Replaces: W11371095) |
|
$ 14.35 | |||||
| 4 | W11360661 | Cover, Door Hinge (right Hinge (top)/ Left Hinge (bottom)) |
|
$ 155.43 | |||||
| 5 | W11747576 | Gasket. Door (Replaces: W11360668) |
|
Immediately | $ 89.21 | ||||
| 6 | W11774798 | Gasket, Sash (top/bottom) (Replaces: W11360665) |
|
Immediately | $ 105.57 | ||||
| 7 | W11360666 | Gasket, Sash (side) |
|
Immediately | $ 270.61 | ||||
| 1A | W11360617 | Door Assembly (right Hinge) |
|
$ 1,479.13 | |||||
| 4A | W11360664 | Cover, Door Hinge (right Hinge (bottom)/ Left Hinge (top)) |
|
$ 155.43 | |||||
| NI | W11415674 | Installation Hardware Kit (screw, Custom Overlay Door (m4 X 30)) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
