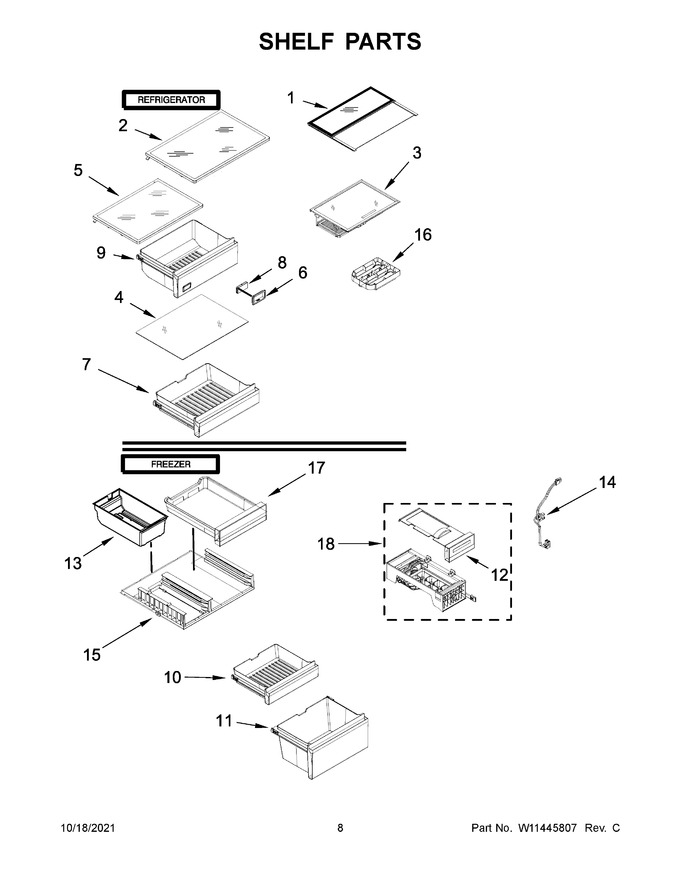

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11424097		Shelf, Tuck   (Replaces: W11391367)				$ 219.82
2	W11409862		Shelf, Glass   (Replaces: W11391363)				$ 206.06
3	W11394623		Assembly, Shelf   (Replaces: W11262585)				$ 205.20
4	W11424101		Shelf, Glass   (Replaces: W11391361)				$ 206.35
5	W11394627		Glass, Meat Pan   (Replaces: W11248393)				$ 146.49
6	W10435530		Frame, Humidity Control				$ 14.66
7	W11403606		Assembly, Crisper				$ 116.88
8	W10431229		Control, Humidity				$ 14.50
9	W11391352		Pan, Meat				$ 116.88
10	W11391313		Drawer, Middle				$ 120.80
11	W11391351		Drawer, Bottom			Immediately	$ 185.04
12	W11440727		Ice Maker Front, Cover   (Replaces: W11263186)		Appelez-nous	-
13	W11436901		Bin, Ice Cube   (Replaces: W11425342)				$ 33.33
14	W11432743		Jumper, Wire Assembly				$ 62.33
15	W11261262		Shelf, Multi Utility				$ 212.95
16	W11348333		Holder, Beverage				$ 203.36
17	W11391358		Freezer, Drawer (right Hand)				$ 61.75
18	W11436851		Assembly, Ice Maker   (Replaces: W11337838)			Immediately	$ 137.23
NI	NP		Cabinet (not Serviced)		Appelez-nous	-
NI	W11436901		Ice Cube Bin				$ 33.33
NI	W11416493		Complete Ice Maker Kit (includes Bin)				$ 142.88
