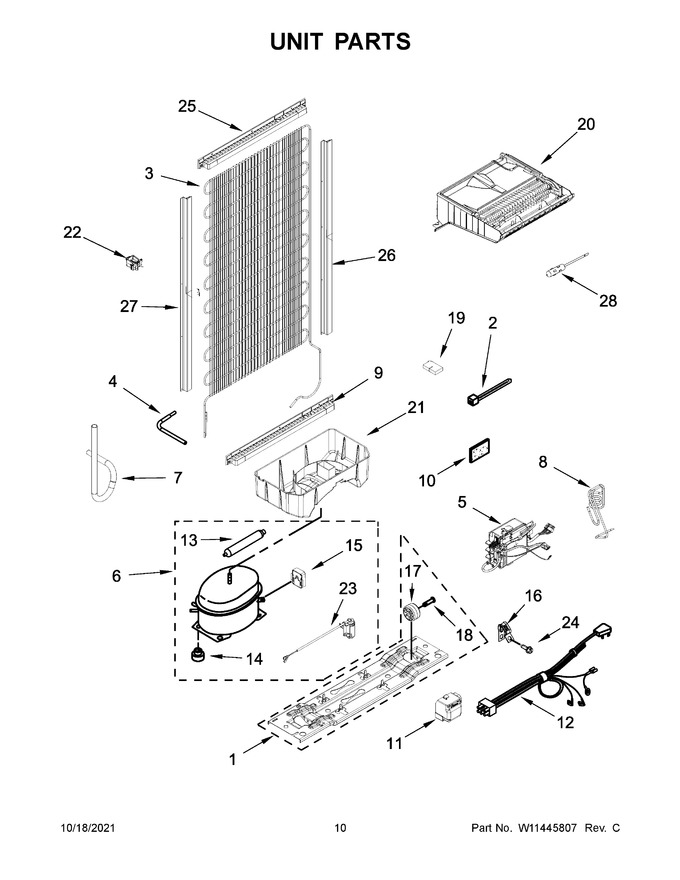

06 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11407714		Plate, Compressor Mounting				$ 87.24
2	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.47
3	W11512410		Condenser (also Order The Following Lokring Parts)   (Replaces: W11387135)				$ 173.64
4	W11661102		Tube, Process   (Replaces: 2174739)				$ 27.41
5	W11487480		Box, Control   (Replaces: W11290670)			Immediately	$ 215.38
6	W11370574		Compressor (also Order The Following Lokring Parts)   (Replaces: W11225065)			Immediately	$ 392.58
7	W11403094		Suction Tube, Static   (Replaces: W11383830)				$ 57.97
8	W11487479		Coil, Discharge (also Order The Following Lokring Parts)   (Replaces: W11394373)		Appelez-nous	-
9	W11264207		Condenser, Bottom Protection				$ 78.03
10	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 13.29
11	W11342284		Cover, Terminal Board				$ 92.61
12	W11248029		Assembly, Power Cord				$ 155.99
13	W11109499		Drier (service Drier Without Dye) (also Order The Following Lokring Parts)   (Replaces: W10805035)			Immediately	$ 35.21
14	WPW10169124		Grommet   (Replaces: 10835903)				$ 6.80
15	W11643623		Device, Start   (Replaces: W11387715)				$ 117.70
16	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 19.91
17	WPW10475495		Roller   (Replaces: W10475495)			Immediately	$ 28.85
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 17.21
19	W10261299		Wedge, Evaporator		Appelez-nous	-
20	W11394622		Evaporator Assembly (with Defrost Heater) (also Order The Following Lokring Parts)   (Replaces: W11196404)			Immediately	$ 338.51
21	W11559685		Tray, Water   (Replaces: W11461578)			Immediately	$ 89.96
22	WP326020544		Support, Condenser   (Replaces: 326020544)				$ 9.77
23	W11652060		Assembly, Capacitor   (Replaces: W11358319)			Immediately	$ 84.93
24	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
25	W11264206		Condenser, Top Protection				$ 77.95
26	W11377937		Condenser, Side Protection (right)			Immediately	$ 79.29
27	W11377938		Condenser Side Protection (left)				$ 76.60
28	NP		Cabinet (not Serviced)		Appelez-nous	-
13A	W11506623		5 Nk Ms 00 (heat Loop To Drier)   (Replaces: W10891058)			Immediately	$ 19.80
13B	W11504448		5/1.8-nr-al-00 (capillary Tube To Drier)   (Replaces: W11400723)			Immediately	$ 43.72
20A	W11504423		8/2 Nr Al 00 (capillary Tube To Evaporator)   (Replaces: W10890290)			Immediately	$ 26.61
20B	W11506620		8 Nk Al 00 (capillary Tube To Evaporator)   (Replaces: W10891067)			Immediately	$ 28.89
20C	W11504419		8/7- Nr-al-00 (suction Line To Evaporator)   (Replaces: W11400725)			Immediately	$ 31.67
20D	W11506620		8 Nk Al 00 (capillary Tube To Evaporator)   (Replaces: W10891067)			Immediately	$ 28.89
20E	W11225184		200-mm- Al-00 Aluminum Suction Line(order 2)   (Replaces: W11187707)			Immediately	$ 64.14
3A	W11504445		5/4 Nr Ms 00 (heat Loop To Condenser)   (Replaces: W10890131)			Immediately	$ 26.03
3B	W11506623		5 Nk Ms 00 (heat Loop To Drier)   (Replaces: W10891058)			Immediately	$ 19.80
6A	W11504415		8.5/8 Nr Ms 00 (suction Tube To Compressor)   (Replaces: W10890087)			Immediately	$ 23.30
6B	W11504431		7/5 Nr Ms 00 (discharge Tube To Compressor)   (Replaces: W10890117)			Immediately	$ 24.42
6C	W11504420		8/6 Nr Ms 00 (charging Tube To Compressor)   (Replaces: W10890102)			Immediately	$ 23.29
6D	W11506635		Tube, Charging (1/4" W/ Schrader Valve)   (Replaces: W10913906)			Immediately	$ 33.33
8A	W11504431		7/5 Nr Ms 00 (discharge Tube To Compressor)   (Replaces: W10890117)			Immediately	$ 24.42
8B	W11504445		5/4 Nr Ms 00 (heat Loop To Condenser)   (Replaces: W10890131)			Immediately	$ 26.03
NI	NP		Cabinet (not Serviced)		Appelez-nous	-
