01 - Cover Sheet

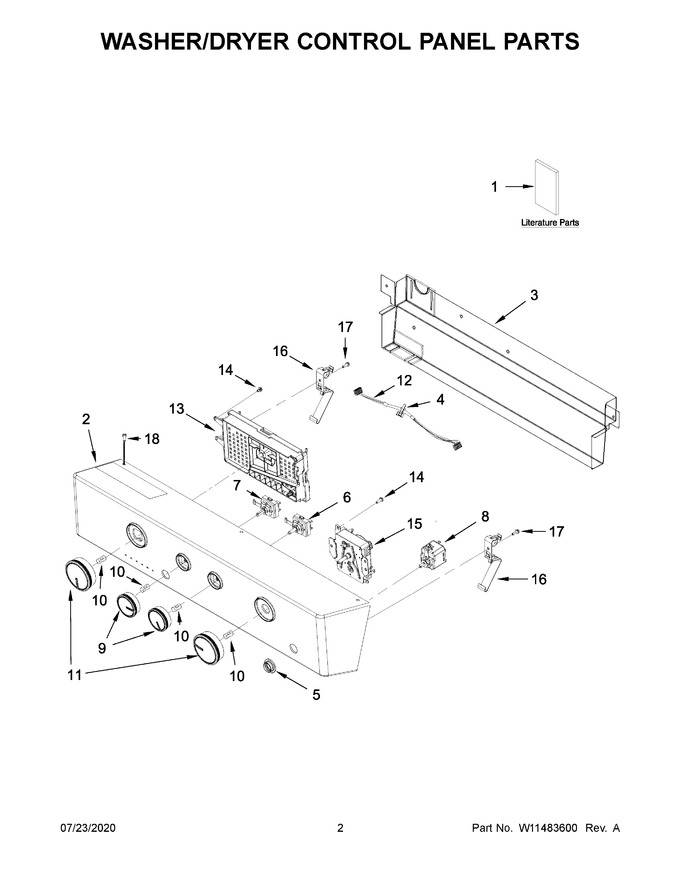

02 - Washer/dryer Control Panel Parts


03 - Dryer Front Panel And Door Parts


04 - Dryer Cabinet And Motor Parts


05 - Dryer Bulkhead Parts


06 - Dryer Support And Washer Harness Parts


07 - Top And Cabinet Parts


08 - Basket And Tub Parts


09 - Gearcase, Motor And Pump Parts


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11028710		Use And Care Guide		Appelez-nous	-
2	W11367045		Console   (Replaces: W11028808)				$ 338.58
3	W11040441		Shield, Console		Appelez-nous	-
4	W10210799		Clip, Harness		Appelez-nous	-
5	W11049351		Button				$ 63.82
6	W10859568		Switch, Rotary Encoder (5 Position)   (Replaces: W10414411)			Immediately	$ 169.49
7	W11168256		Switch, Rotary Encoder (2 Position)   (Replaces: W10414381)			Immediately	$ 197.20
8	WPW10420741		Switch, Push To Start   (Replaces: W10420741)			Immediately	$ 32.81
9	W10576636		Knob, Assembly (white/metallic)		Appelez-nous	-
10	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
11	W11501455		Timer Knob, Assembly (white/metallic)   (Replaces: W10576634)				$ 41.20
12	W10694669		Harness, Jumper				$ 76.59
13	W11629601		Control Unit Assembly, Machine And Motor   (Replaces: W11333849)			Immediately	$ 300.39
14	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
15	W10854240		Timer Assembly   (Replaces: W10642934)			Immediately	$ 313.60
16	3389453		Bracket, Hinge				$ 81.96
17	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
18	W11590579		Screw   (Replaces: W10794806)				$ 13.26
1A	W11425717		Installation Instructions		Appelez-nous	-
1B	W11082888		Tech Sheet		Appelez-nous	-
1C	W11129508		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
