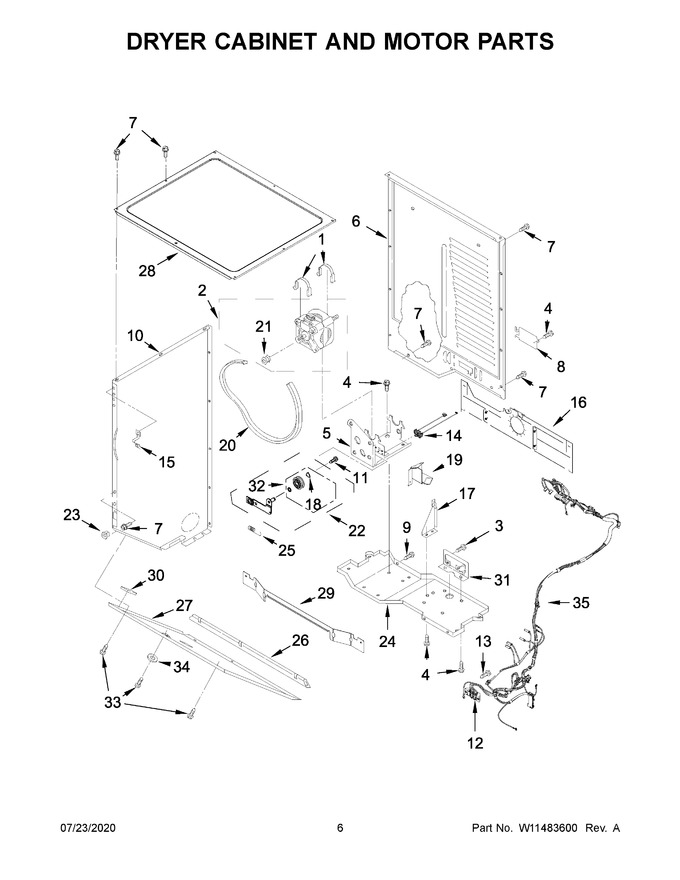

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 2 | 279811 | Motor, Main Drive (60 Hz) (Replaces: W10396030) |
|
Immediately | $ 349.75 | ||||
| 3 | WP273556 | Screw (Replaces: 3387485) |
|
Immediately | $ 7.59 | ||||
| 4 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 5 | W11107903 | Bracket, Motor |
|
$ 50.96 | |||||
| 6 | W10892491 | Rear Panel |
|
$ 295.02 | |||||
| 7 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 8 | W11609859 | Bracket, Terminal Block (Replaces: W11424535) |
|
- | |||||
| 9 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 10 | W11043388 | Panel, Side (white (left Hand)) |
|
$ 273.80 | |||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 13 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 14 | WPW10411937 | Switch, Broken Belt (Replaces: W10411937) |
|
Immediately | $ 32.45 | ||||
| 15 | 3389231 | Clip, Front Panel |
|
$ 11.95 | |||||
| 16 | W11341565 | Panel, Back Assembly |
|
- | |||||
| 17 | W11100260 | Bracket, Bulkhead |
|
$ 18.43 | |||||
| 18 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 19 | W10760374 | Bracket, Roller Assembly |
|
$ 48.38 | |||||
| 20 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 21 | 279811 | Pulley, Motor (60 Hz.) (Replaces: 3391087) |
|
Immediately | $ 349.75 | ||||
| 22 | WPW10547294 | Idler And Pulley Assembly (Replaces: W10547294) |
|
Immediately | $ 46.36 | ||||
| 23 | WP692400 | Screw Grommet (Replaces: 692400) |
|
Immediately | $ 7.22 | ||||
| 24 | W11436278 | Base, Dryer (Replaces: W11259366) |
|
- | |||||
| 25 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 26 | W11176116 | Cove, Transition Panel (white) (Replaces: W11028800) |
|
$ 179.53 | |||||
| 27 | 3389272 | Panel, Transition |
|
$ 239.27 | |||||
| 28 | W11096834 | Top, Dryer (assembly) |
|
$ 263.08 | |||||
| 29 | W11028409 | Bracket |
|
$ 18.68 | |||||
| 30 | 3389682 | Spacer, Toe Panel |
|
$ 8.31 | |||||
| 31 | 3393721 | Bracket, Terminal Block (Replaces: 3393722) |
|
$ 20.20 | |||||
| 32 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 29.26 | ||||
| 33 | WP693304 | Screw (Replaces: 693304) |
|
$ 7.60 | |||||
| 34 | W11028744 | Magnet, Lid Catch |
|
Immediately | $ 263.32 | ||||
| 35 | W11744211 | Harness, Dryer (Replaces: W11331662) |
|
- | |||||
| 10A | W11043381 | Panel, Side (white (right Hand)) |
|
$ 251.86 |
