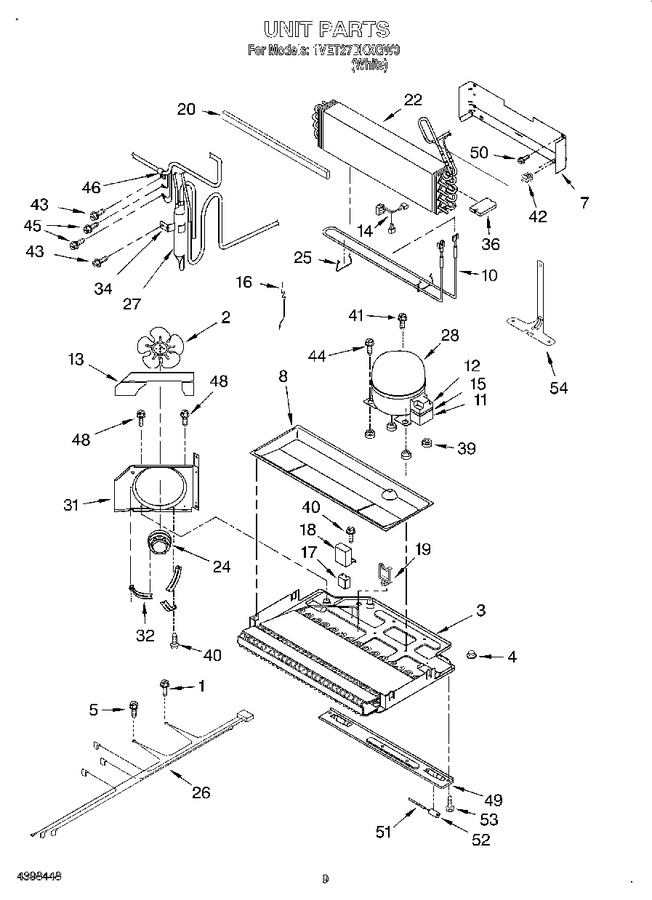

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 4343865)				$ 7.32
2	4344271		Fan, Blade		Appelez-nous	-
3	4344508		Condenser & Pan Assembly		Appelez-nous	-
4	4344287		Plug, Button		Appelez-nous	-
5	WP489399		Screw   (Replaces: 4343691)				$ 7.30
7	4344486		Heat Shield		Appelez-nous	-
8	4344510		Drain Pan		Appelez-nous	-
10	8170433		Evaporator Heater		Appelez-nous	-
11	4343852		Cover		Appelez-nous	-
12	4343849		Overload		Appelez-nous	-
13	4344275		Gasket		Appelez-nous	-
14	8170432		Bi-metal		Appelez-nous	-
15	WP10097202		Relay   (Replaces: 4343850)				$ 124.93
16	4344497		Clip, Heat		Appelez-nous	-
17	4343851		Capacitor		Appelez-nous	-
18	4344277		Shield, Capacitor		Appelez-nous	-
19	4343969		Clip, Wire		Appelez-nous	-
20	4344495		Gasket		Appelez-nous	-
22	4344418		Evaporator		Appelez-nous	-
24	4344419		Motor, Fan		Appelez-nous	-
25	W11673433		Clip, Heater   (Replaces: 4343918)				$ 148.18
26	4344415		Harness, Unit		Appelez-nous	-
27	W10843121		Drier   (Replaces: 4344268)			Immediately	$ 57.13
28	W10309994		Compressor (includes Items 11, 12, 15, 17 & 27)   (Replaces: 8170362)			Immediately	$ 643.55
31	4344554		Shroud		Appelez-nous	-
32	4344272		Bracket, Fan Motor		Appelez-nous	-
34	4343763		Clip, Drier		Appelez-nous	-
36	4344500		Block, Evaporator (right Side)		Appelez-nous	-
36	4344482		Block, Evaporator (left Side)		Appelez-nous	-
39	4343845		Grommet (4)		Appelez-nous	-
40	4344562		Screw		Appelez-nous	-
41	4344511		Screw (2)		Appelez-nous	-
42	4344487		Clip, Evaporator		Appelez-nous	-
43	WP489069		Screw   (Replaces: 4343772)			Immediately	$ 8.40
44	4343847		Screw (2)		Appelez-nous	-
45	67006425		Screw   (Replaces: 4344545)			Immediately	$ 7.30
46	4343661		Clamp		Appelez-nous	-
48	4343749		Screw		Appelez-nous	-
49	4344518		Cabinet, Brace		Appelez-nous	-
50	67006425		Screw   (Replaces: 4344396)			Immediately	$ 7.30
51	4344289		Axle-roller		Appelez-nous	-
52	4344288		Roller-rear		Appelez-nous	-
53	4344292		Screw		Appelez-nous	-
54	876764		Valve, Access(3/16``)			Immediately	$ 95.92
54	978030		Valve, Access (3/4``)				$ 137.25
54	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
54	4344512		Brace		Appelez-nous	-
54	978026		Valve, Access (5/16``)			Immediately	$ 134.49
54	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
54	978028		Valve, Access (1/2)		Appelez-nous	-
54	978029		Valve Access (5/8``)				$ 93.85
