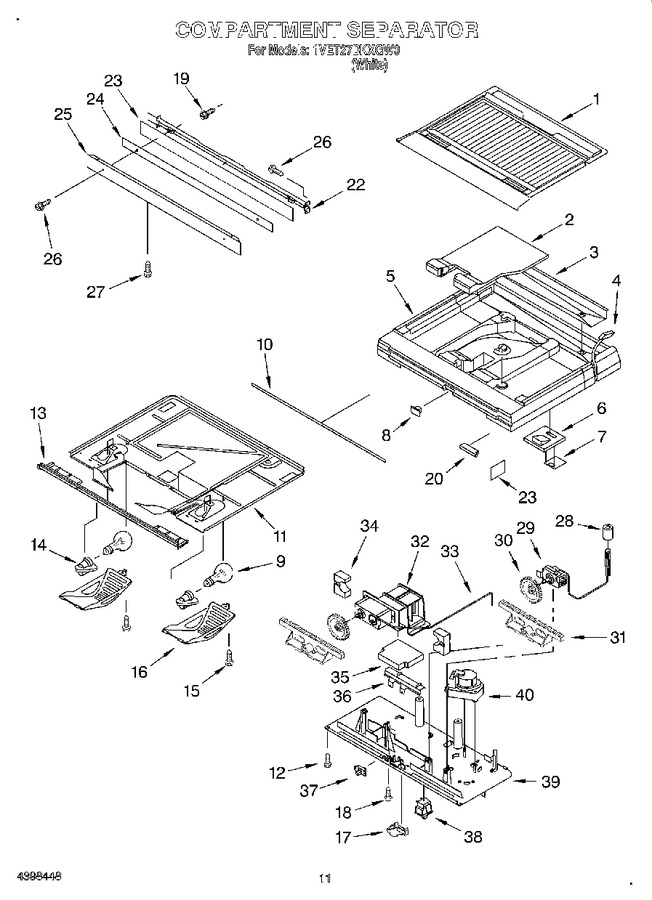

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344466		Separator, Comp.		Appelez-nous	-
2	4344460		Insert, Drain		Appelez-nous	-
3	4344464		Tray, Drip		Appelez-nous	-
4	8170426		Harness, Drn Blk		Appelez-nous	-
5	4344461		Insulation		Appelez-nous	-
6	4344470		Insert, Air Sply		Appelez-nous	-
7	4344473		Gasket, Air Sply		Appelez-nous	-
8	4344467		Cap, Switch		Appelez-nous	-
9	W11679940		Light Bulb (2)   (Replaces: 4343660)			Immediately	$ 11.30
10	4344517		Membrane, Breaker		Appelez-nous	-
11	4344462		Bottom, Comp. Separator		Appelez-nous	-
12	4344469		Screw		Appelez-nous	-
13	4344471		Frame, Breaker		Appelez-nous	-
14	8170384		Socket (2)		Appelez-nous	-
15	4343861		Screw (2)		Appelez-nous	-
16	4344472		Shield, Light (2)		Appelez-nous	-
17	4344468		Knob (2)		Appelez-nous	-
18	4344167		Screw		Appelez-nous	-
19	4343860		Screw		Appelez-nous	-
20	4344459		Insulation		Appelez-nous	-
22	4344453		Plate, Tap		Appelez-nous	-
23	4344454		Insulation		Appelez-nous	-
24	8170418		Heater, Mullion		Appelez-nous	-
25	4344441		Mullion		Appelez-nous	-
26	WP489349		Grommet, Screw   (Replaces: 4344198)			Immediately	$ 8.43
27	4344458		Screw		Appelez-nous	-
28	8170429		Insulation		Appelez-nous	-
29	8170428		Thermostat (includes Items 30 & 33)		Appelez-nous	-
30	4344476		Pinion, Control		Appelez-nous	-
31	4344475		Rack, Control		Appelez-nous	-
32	4344406		Control, Damper (includes Items 30, 33, 34 & 35)		Appelez-nous	-
33	4344481		Tube, Plastic		Appelez-nous	-
34	4344477		Insert, Damper		Appelez-nous	-
35	4344478		Insulation		Appelez-nous	-
36	4344480		Shield, Wire		Appelez-nous	-
37	4344422		Switch		Appelez-nous	-
38	W11384469		Switch, Light   (Replaces: 8170294)			Immediately	$ 39.09
39	8170427		Housing		Appelez-nous	-
40	4396418		Amkit97   (Replaces: 4344173)				$ 383.28
40	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
40	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
40	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
40	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
40	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
40	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
40	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
40	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
40	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
40	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
40	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
40	833938		Kit, Terminal Connector				$ 8.47
40	4343700		Ice Container Assembly		Appelez-nous	-
40	1117510		Torx Key				$ 5.84
40	R0168027		Timer, Defrost   (Replaces: 4344424)			Immediately	$ 159.86
40	350942		Primer White (13 Oz. Spray Can)				$ 94.14
40	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
40	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
40	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
40	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
40	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
40	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
40	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
40	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
40	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
40	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
