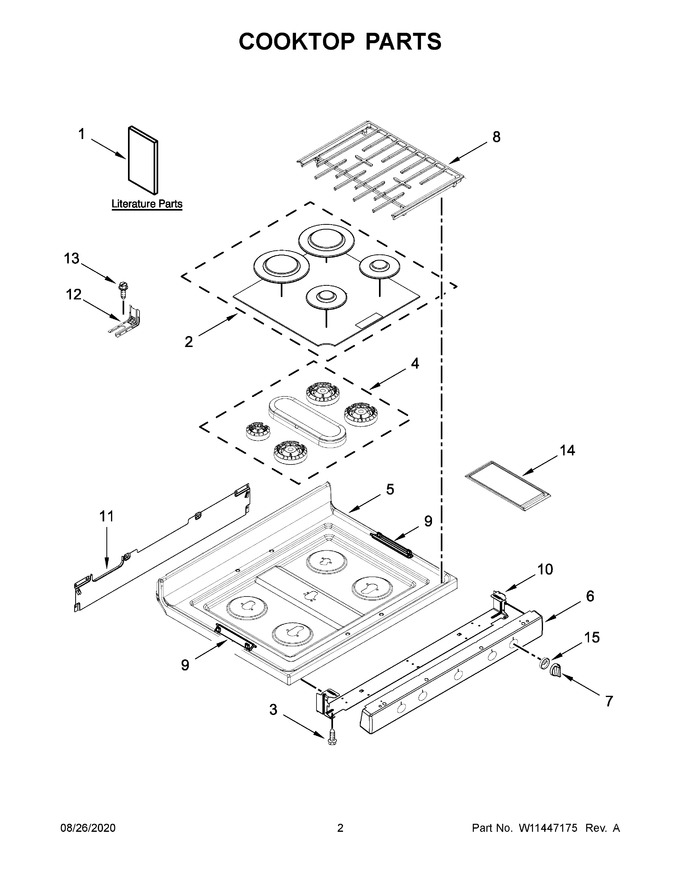

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11383207		Installation Instructions		Appelez-nous	-
2	W11834859		Burner Cap Kit (black (set Of 4) (left Front, Left Rear, Right Front, Right Rear))   (Replaces: W11352138)		Appelez-nous	-
3	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
4	W11662402		Burner Kit   (Replaces: W11367106)			Immediately	$ 117.10
5	W11454367		Cooktop (black)   (Replaces: W11418086)			Immediately	$ 391.68
6	W11028196		Panel, Manifold (stainless)   (Replaces: W10861559)		Appelez-nous	-
7	W11190815		Knob (stainless)   (Replaces: W10858253)			Immediately	$ 74.18
8	W11381652		Grate Kit (black (set Of 2))   (Replaces: W11241655)				$ 348.95
9	N/P		Hinge, Grate (not Serviced)		Appelez-nous	-
10	W11379946		Manifold Panel Bracket		Appelez-nous	-
11	W11379358		Rear Gas Cooktop Bracket		Appelez-nous	-
12	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
13	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
14	W10432544		Griddle			Immediately	$ 59.79
15	W11223011		Bezel (stainless)   (Replaces: W10876919)			Immediately	$ 57.50
1A	W11404102		Use & Care Guide		Appelez-nous	-
1B	W10538797		Tech Sheet		Appelez-nous	-
1C	W10400066		Quick Start Guide (english)		Appelez-nous	-
NI	3196896		Clip, Wire		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 194.90
NI	W10797419		Harness, Main		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
