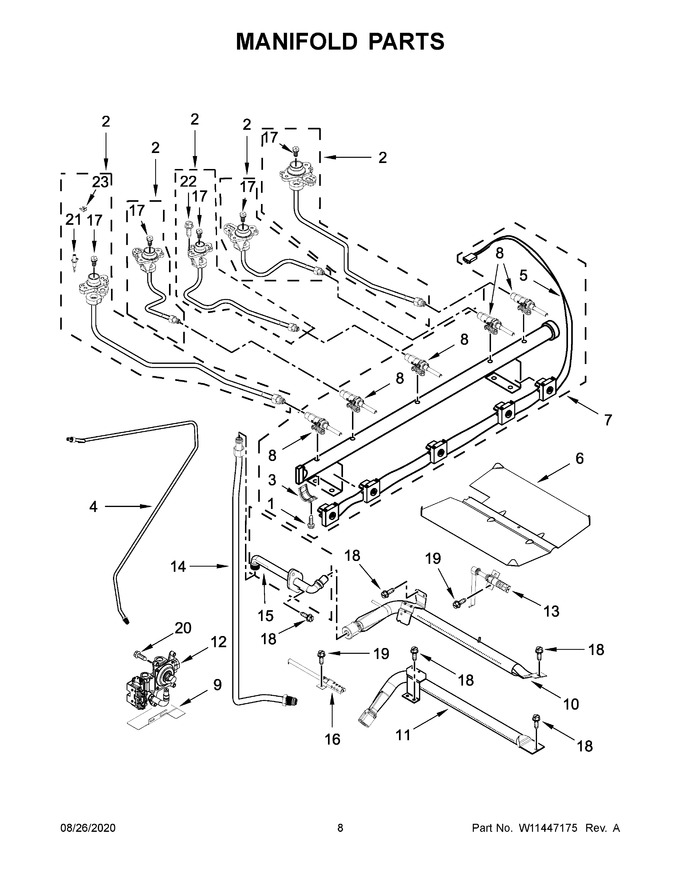

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.59 | |||||
| 2 | W11453934 | Orifice Holder Assembly (18k) (left Front) (Replaces: W11331179) |
|
$ 98.71 | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 4 | W10510125 | Tubing, Main Supply |
|
$ 196.79 | |||||
| 5 | W10906162 | Switch, 5 Burner Manifold Harness (Replaces: W10783317) |
|
$ 170.45 | |||||
| 6 | 3601P336-45 | Baffle, Broil Burner |
|
$ 204.38 | |||||
| 7 | W11418925 | Manifold Assembly |
|
Immediately | $ 285.85 | ||||
| 8 | W11628784 | Valve, Gas (left Front & Right Front) (Replaces: W11352012) |
|
$ 72.40 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 85.48 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 82.49 | ||||
| 12 | W10919226 | Valve, Gas (Replaces: W10720102) |
|
Immediately | $ 195.35 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 98.85 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 170.84 | |||||
| 15 | W10776437 | Fitting, Broil |
|
$ 93.11 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 93.71 | ||||
| 17 | W11428754 | Orifice (18k) (left Front) |
|
$ 77.63 | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 21 | W11453940 | Electrode (left Front, Left Rear) (Replaces: W11428831) |
|
$ 58.01 | |||||
| 22 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 13.26 | ||||
| 23 | W11684564 | Spring, Electrode (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 17A | W10849720 | Orifice (10k) (left Rear) |
|
$ 74.21 | |||||
| 17B | W11428753 | Orifice (15k) (right Front) |
|
Immediately | $ 74.94 | ||||
| 17C | W11677633 | Orifice (5k) (right Rear) (Replaces: W10849719) |
|
$ 89.24 | |||||
| 17D | W11429345 | Orifice (8k) (center) |
|
$ 77.57 | |||||
| 21A | W11453920 | Electrode (right Front, Right Rear, Center) (Replaces: W11428858) |
|
$ 57.92 | |||||
| 2A | W11453941 | Orifice Holder Assembly (9.5k) (left Rear) (Replaces: W11345009) |
|
$ 98.88 | |||||
| 2B | W11453919 | Orifice Holder Assembly (15k) (right Front) (Replaces: W11345011) |
|
$ 101.80 | |||||
| 2C | W11453921 | Orifice Holder Assembly (5k) (right Rear) (Replaces: W11345010) |
|
$ 98.69 | |||||
| 2D | W11453942 | Orifice Holder Assembly (8k) (center) (Replaces: W11345012) |
|
$ 92.11 | |||||
| 8A | W11699929 | Valve, Gas (left Rear, Center) (Replaces: W11352013) |
|
$ 63.42 | |||||
| 8B | W11352015 | Valve, Gas (right Rear) (center) |
|
$ 101.74 | |||||
| NI | W11453918 | Lp 5 Orifice Conversion Kit (Replaces: W11415424) |
|
$ 35.07 | |||||
| NI | W11087486 | Lp Conversion Kit (bake/broil) (Replaces: W10566535) |
|
Immediately | $ 106.16 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
