01 - Cover Sheet
02 - Console Parts

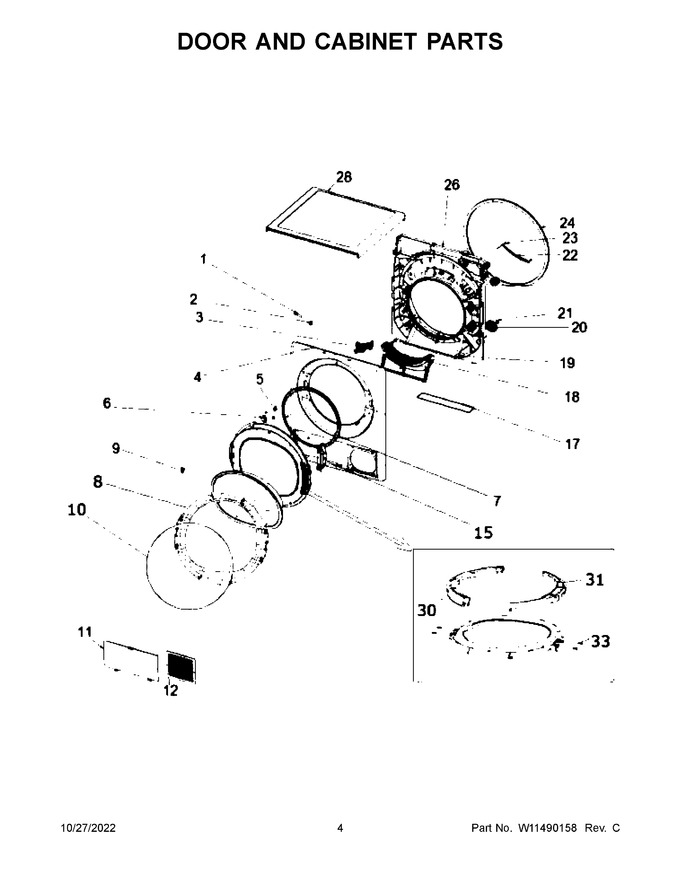

03 - Door And Cabinet Parts
04 - Tub And Cabinet Parts
05 - Base Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11676452 | Sensor Ntc (Replaces: 461975011651) |
|
Immediately | $ 27.38 | ||||
| 2 | W11512145 | Seal, Ntc (Replaces: 461971091591) |
|
- | |||||
| 3 | W11512146 | Switch, Door (Replaces: W11413506) |
|
Immediately | $ 53.88 | ||||
| 4 | W11646204 | Panel, Front (Replaces: W11342787) |
|
- | |||||
| 5 | W11512150 | Door Switch Pin (Replaces: W11039774) |
|
Immediately | $ 22.84 | ||||
| 6 | W11512151 | Assembly, Door Lock (Replaces: W10615880) |
|
Immediately | $ 24.22 | ||||
| 7 | W10713648 | Seal (front Panel - Door) |
|
$ 43.15 | |||||
| 8 | W11096641 | Door, Inner Trim (Replaces: W10615846) |
|
$ 87.45 | |||||
| 9 | W11712578 | Lock, Door (Replaces: 461970109981) |
|
$ 13.98 | |||||
| 10 | W11246416 | Door, Outer Trim Ring (Replaces: W10615860) |
|
$ 359.42 | |||||
| 11 | W11512154 | Filter Door (front Panel) (Replaces: W11124491) |
|
Immediately | $ 41.15 | ||||
| 12 | W11512155 | Assembly, Filter (Replaces: W11368105) |
|
- | |||||
| 15 | W11512157 | Assembly, Door Hinge (Replaces: W10911345) |
|
$ 164.93 | |||||
| 17 | W11512158 | Seal, Air Channel (Replaces: W11295347) |
|
- | |||||
| 18 | W11512159 | Lint Screen (Replaces: W10882414) |
|
$ 89.69 | |||||
| 19 | W11516770 | Pin Roller, Drum (Replaces: C00526587) |
|
- | |||||
| 20 | W11519506 | Roller Drum (Replaces: W11115207) |
|
Immediately | $ 36.13 | ||||
| 21 | W11516782 | Screw (Replaces: C00526591) |
|
- | |||||
| 22 | W11519507 | Sensor, Humidity (Replaces: W10873458) |
|
Immediately | $ 28.68 | ||||
| 23 | 251926501053 | Screw |
|
$ 12.12 | |||||
| 24 | W11519508 | Seal, Front Drum (Replaces: W11333083) |
|
$ 39.39 | |||||
| 26 | W11519602 | Air Channel (Replaces: W10882747) |
|
- | |||||
| 28 | W11516796 | Top (Replaces: W11395663) |
|
Immediately | $ 204.45 | ||||
| 30 | W10615855 | Door, Inner (lock) |
|
Immediately | $ 73.34 | ||||
| 31 | W10615854 | Door, Inner (hinge) |
|
Immediately | $ 73.34 | ||||
| 33 | 251921201061 | Screw |
|
$ 23.58 | |||||
| 12A | W11512156 | Inlet Insulation (Replaces: W11337042) |
|
- | |||||
| 15A | 461971424051 | Bushing, Hinge (outer) |
|
$ 23.74 | |||||
| 15B | W10590599 | Hinge, Door |
|
$ 69.80 |
