01 - Cover Sheet
02 - Console Parts
03 - Door And Cabinet Parts

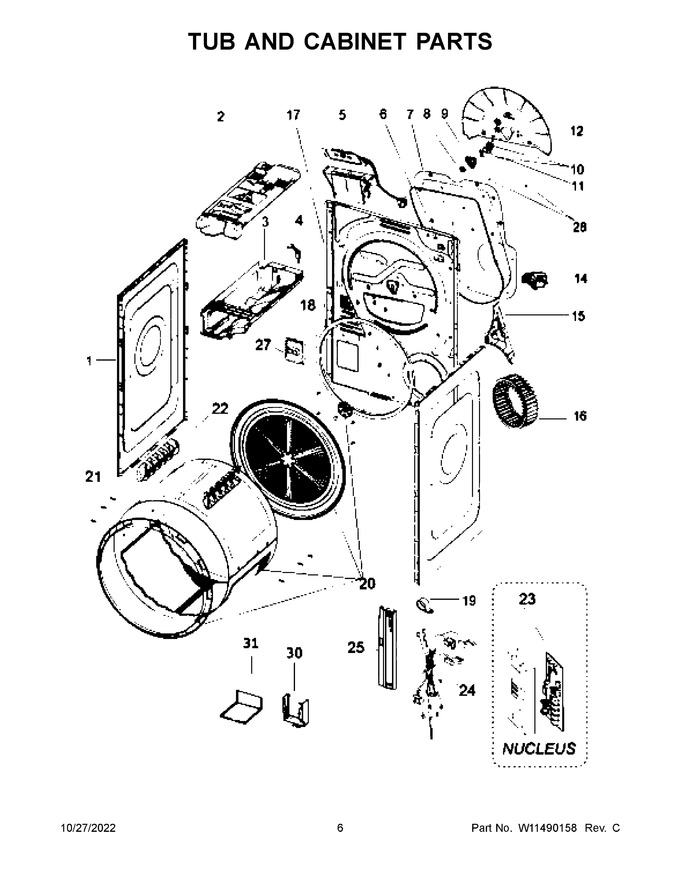

04 - Tub And Cabinet Parts
05 - Base Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11516797 | Side Panel (white) (Replaces: W11360752) |
|
Immediately | $ 198.74 | ||||
| 2 | W11644691 | Tank, Water (Replaces: W11101841) |
|
$ 84.22 | |||||
| 3 | W11519604 | Housing, Water Tank (Replaces: W10609215) |
|
- | |||||
| 4 | W10629345 | Pipe, Water Tank Inflow |
|
$ 104.50 | |||||
| 5 | W11519683 | Heater Element (Replaces: W11399461) |
|
Immediately | $ 325.99 | ||||
| 6 | W11519684 | Seal, Heater Channel (hp) (Replaces: W11392674) |
|
$ 19.41 | |||||
| 7 | W11519685 | Heater Channel (Replaces: W11309322) |
|
$ 169.89 | |||||
| 8 | 461970104891 | Bearing, Drum (axis) |
|
$ 76.36 | |||||
| 9 | 461970109272 | Housing, Bearing (axis) |
|
$ 27.76 | |||||
| 10 | 461970105381 | Cover, Bearing (axis) |
|
$ 170.27 | |||||
| 11 | 461970104831 | Washer, Spring |
|
Immediately | $ 12.74 | ||||
| 12 | W11519688 | Cover (Replaces: W11098014) |
|
- | |||||
| 14 | W10347721 | Rfi Filter |
|
$ 113.17 | |||||
| 15 | W11544342 | Spoiler (Replaces: W11128226) |
|
- | |||||
| 16 | W11519690 | Condenser, Blower Wheel (Replaces: W11037913) |
|
$ 64.15 | |||||
| 17 | W11516794 | Panel, Rear (bulkhead) (Replaces: W10914994) |
|
$ 234.62 | |||||
| 18 | W11516795 | Seal, Rear Drum (Replaces: W11333085) |
|
$ 61.25 | |||||
| 19 | W11516771 | Cord Clip (Replaces: C00141387) |
|
- | |||||
| 20 | W11444454 | Assembly, Drum (Replaces: W10869102) |
|
$ 411.44 | |||||
| 21 | 251925600056 | Screw |
|
- | |||||
| 22 | W11519721 | Baffle, Drum (Replaces: W10869109) |
|
- | |||||
| 23 | W11527562 | Module, Programed (nucleus) (Replaces: W11410518) |
|
$ 331.69 | |||||
| 24 | W11195379 | Assembly, Detergent Level Sensor |
|
Immediately | $ 181.80 | ||||
| 25 | W11517016 | Cover, Acu (upper) (Replaces: W10898907) |
|
- | |||||
| 27 | W11519722 | Cover, Pump (rear Panel) (Replaces: W10885561) |
|
- | |||||
| 28 | W11519723 | Spacer (Replaces: W11400246) |
|
- | |||||
| 30 | W11519724 | Housing, Terminal Box (Replaces: W11350841) |
|
- | |||||
| 31 | W11519726 | Cover, Terminal Box (Replaces: W11161584) |
|
- | |||||
| 14A | W11516832 | Bracket, Rfi Filter (Replaces: W11369802) |
|
- | |||||
| 16A | W11519718 | Cooling, Blower Wheel (Replaces: W11096943) |
|
$ 35.76 | |||||
| 20A | W11519720 | Pad, Damping (Replaces: W11295338) |
|
$ 16.31 | |||||
| 24A | W11526969 | Harness, Front (with Ground) (Replaces: W11391149) |
|
$ 67.73 | |||||
| 24B | W11526972 | Harness, Cd - Bpm - Reed Switch (Replaces: W11375803) |
|
Immediately | $ 180.68 | ||||
| 24C | W11519730 | Harness, Line (Replaces: W11391268) |
|
$ 28.43 | |||||
| 24D | W11517011 | Assembly, Terminal Block (complete) (Replaces: W11375804) |
|
Immediately | $ 80.88 | ||||
| 30A | W11519725 | Strain Relief (Replaces: W10891845) |
|
- | |||||
| 7A | W11519687 | Heat Pad Metal (large) (Replaces: W11351828) |
|
$ 119.98 |
