01 - Cover Sheet

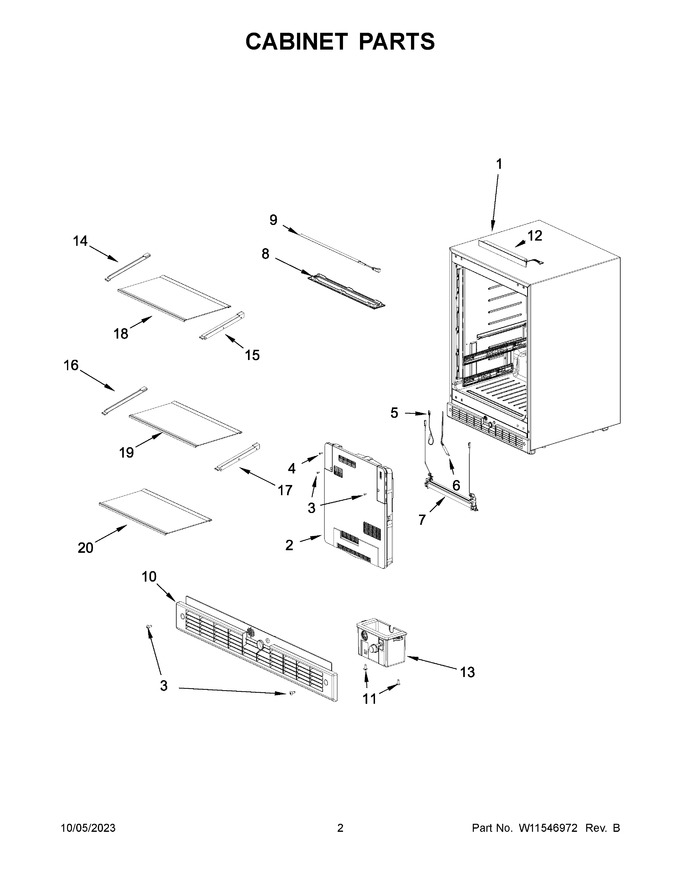

02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI312DF4305528C9341C495E6332910255		Cabinet (not A Service Part)		Appelez-nous	-
2	W11633775		Led Assembly   (Replaces: W11407975)				$ 339.97
3	W11675284		Screw   (Replaces: W11371095)				$ 14.35
4	W11375760		Screw		Appelez-nous	-
5	W11266076		Sensor, Defrost   (Replaces: W11263884)				$ 109.50
6	W11359415		Fuse, Temperature				$ 98.35
7	W11359416		Defrost Holder And Heater		Appelez-nous	-
8	W11312450		Cover, Led		Appelez-nous	-
9	W11497301		Assembly, Led   (Replaces: W11492253)				$ 73.85
10	W11360218		Kick, Plate				$ 109.15
11	W11371097		Screw		Appelez-nous	-
12	W11546137		Assembly, Control		Appelez-nous	-
13	W11407983		Assembly, Switch Box				$ 67.10
14	W10797332		Support, Shelf (left Hand)				$ 27.14
15	W10797333		Support, Shelf (right Hand)				$ 27.14
16	W10797336		Support, Shelf (left Hand)		Appelez-nous	-
17	W10797337		Support, Shelf (right Hand)		Appelez-nous	-
18	W11548215		Assembly, Glass Tray   (Replaces: W11546124)		Appelez-nous	-
19	W11548216		Assembly, Glass Tray   (Replaces: W11546125)		Appelez-nous	-
20	W11547158		Tray, Glass   (Replaces: W11538045)				$ 97.02
