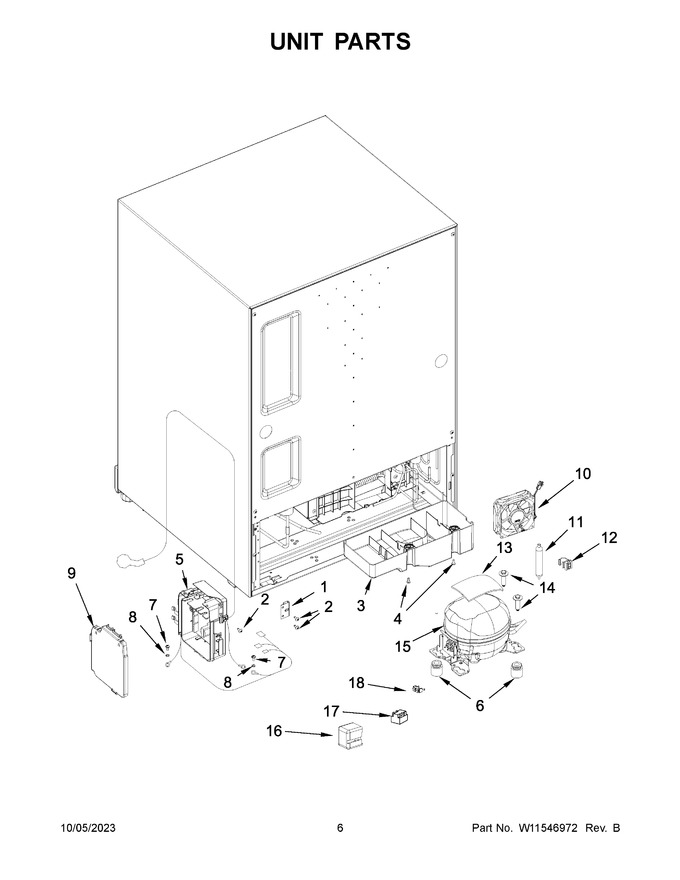

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10270517 | Clamp, Cord |
|
$ 71.56 | |||||
| 2 | W11371097 | Screw |
|
- | |||||
| 3 | W11538057 | Pan, Water |
|
$ 104.69 | |||||
| 4 | W11375763 | Screw |
|
- | |||||
| 5 | W11823928 | Assembly, Pcb Box (includes Power Cord (Replaces: W11546126) |
|
$ 655.52 | |||||
| 6 | WP4344779 | Grommet, Compressor (Replaces: 4344779) |
|
$ 7.62 | |||||
| 7 | 4344826 | Screw |
|
$ 15.03 | |||||
| 8 | W11266077 | Washer (Replaces: W11265570) |
|
- | |||||
| 9 | W11313206 | Cover, Pcb |
|
$ 73.67 | |||||
| 10 | W11360536 | Assembly, Fan Motor |
|
$ 194.29 | |||||
| 11 | W10163273 | Drier |
|
$ 93.07 | |||||
| 12 | W11266075 | Clamp (Replaces: W11265569) |
|
- | |||||
| 13 | W11596025 | Compressor, Rubber (Replaces: W11360595) |
|
$ 34.44 | |||||
| 14 | W10772873 | Bolt, Compressor (Replaces: 4344780) |
|
- | |||||
| 15 | W11754545 | Compressor (Replaces: W11531824) |
|
$ 697.82 | |||||
| 16 | W11579581 | Cover (Replaces: W11568820) |
|
- | |||||
| 17 | W11596023 | Ptc Thermistor (Replaces: W11422771) |
|
$ 67.15 | |||||
| 18 | W11579512 | Protector, Motor (Replaces: W11568812) |
|
$ 41.27 | |||||
| NI | ARIF916CC318E008C40755DF76F91C7B724 | Refrigerant Charge 52 Grams (r600a) |
|
- |
