SELECT A DIAGRAM

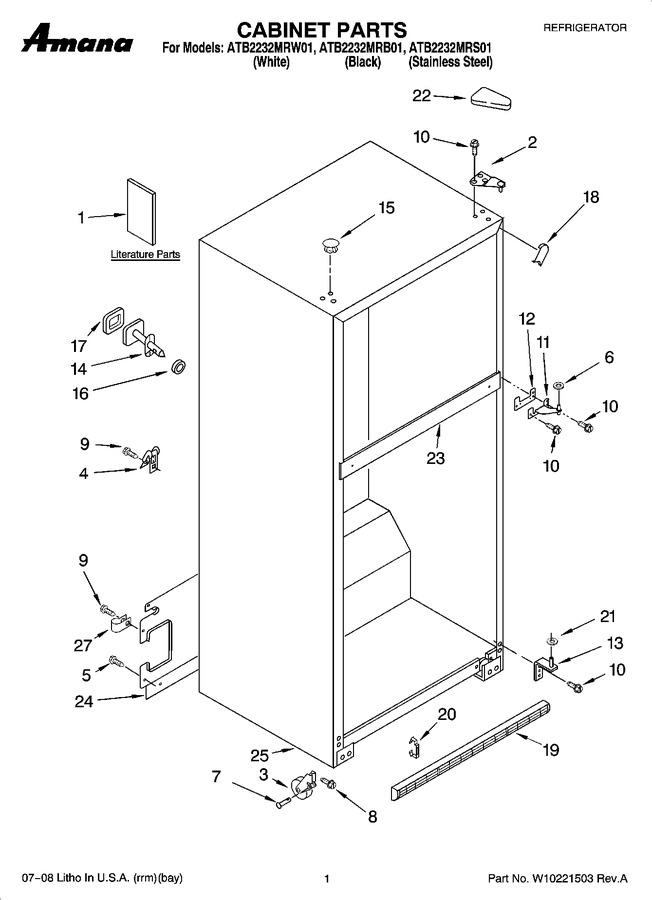

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual Ref./fzr.				$ 30.30
1	W10142142		Service & Wiring Sheet		Appelez-nous	-
1	W10206574		Energy Label		Appelez-nous	-
1	W10208848		Use & Care Guide (bilingual)		Appelez-nous	-
1	W10208847		Use & Care Guide (trilingual)		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 107.48
3	WP2166108		Roller, Front (2)   (Replaces: 2166108)			Immediately	$ 31.28
4	549193		Clamp, Service Cord				$ 12.65
5	WP489427		Screw   (Replaces: 489427)				$ 7.06
6	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.28
7	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 17.21
8	WP3400504		Screw   (Replaces: 3400504)				$ 6.80
9	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 7.54
10	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
11	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 82.82
12	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 10.06
13	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 8.35
15	WP2183998		Hole Plug (6) (black)   (Replaces: 2183998)				$ 17.11
15	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 20.58
18	WPW10283959		Corner Filler (2) (white)   (Replaces: 2201014)				$ 7.39
18	W11252732		Corner Filler (2) (black)   (Replaces: 2201017)				$ 11.76
19	2254315		Grille (includes Illus. 20) (black)				$ 41.54
19	2254313		Grille (includes Illus. 20) (white)				$ 41.62
20	2189356		Clip, Grille (2)				$ 5.70
21	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.67
22	WP2213360		Cover, Hinge (white)   (Replaces: 2213360)				$ 18.17
22	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 17.21
24	2254576		Cover, Unit				$ 48.13
27	WP488366		Tube Clamp   (Replaces: 489385)				$ 10.73

    View Diagram in Separate Window       Print Part List
