SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts

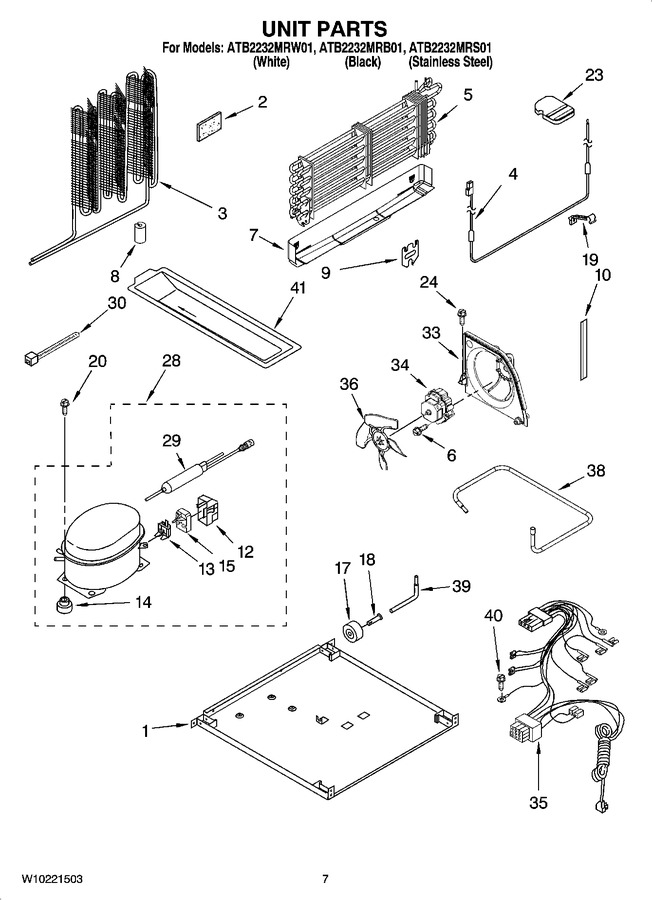

04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320187		Plate, Unit Mounting		Appelez-nous	-
2	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 13.29
3	W10159808		Condenser		Appelez-nous	-
4	WPW10140847		Heater, Defrost   (Replaces: 2314157)				$ 150.61
5	2254249		Evaporator Assy.				$ 239.15
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	2254295		Drain Pan				$ 74.91
8	W10852725		Grommet, Cond (4)   (Replaces: 2319835)				$ 7.28
9	2176301		Bracket, Heater				$ 6.37
10	2300638		Extension, Air Baffle				$ 52.69
12	WP2162358		Cover ((service Only))   (Replaces: 4387731)				$ 85.76
12	WP2162358		Cover (production)   (Replaces: 2162358)				$ 85.76
13	WP2302290		Overload (production)   (Replaces: 2302290)				$ 126.20
13	WP4387938		Overload (service Only)   (Replaces: 4387938)				$ 178.72
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.57
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.01
15	WP2258450		Start-device   (Replaces: 2258450)				$ 106.61
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 28.85
18	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 17.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw   (Replaces: 489373)				$ 7.01
23	2201185		Support Block				$ 8.21
24	3400518		Screw				$ 12.27
28	W10823815		Compressor (includes Items 12,13,14,29 29 Drier 2319825 Production W10143759 Service   (Replaces: W10171778)				$ 637.07
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.47
33	WP2315541		Air Baffle   (Replaces: 2315541)			Immediately	$ 79.19
34	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 111.76
35	2187764		Wire Assy. Unit				$ 258.93
36	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 22.67
38	2205293		Tube, Suction				$ 92.88
39	W11676464		Tube, Process   (Replaces: 2212848)				$ 97.75
40	WP489128		Screw   (Replaces: 488500)				$ 10.26
41	WP2254574		Tray, Evaporator   (Replaces: 2254574)				$ 165.23
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 123.53
NI	876764		Valve, Access(3/16``)			Immediately	$ 86.33
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access (5/16``)			Immediately	$ 121.04
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 16.79

    View Diagram in Separate Window       Print Part List
