01 - Cover Sheet

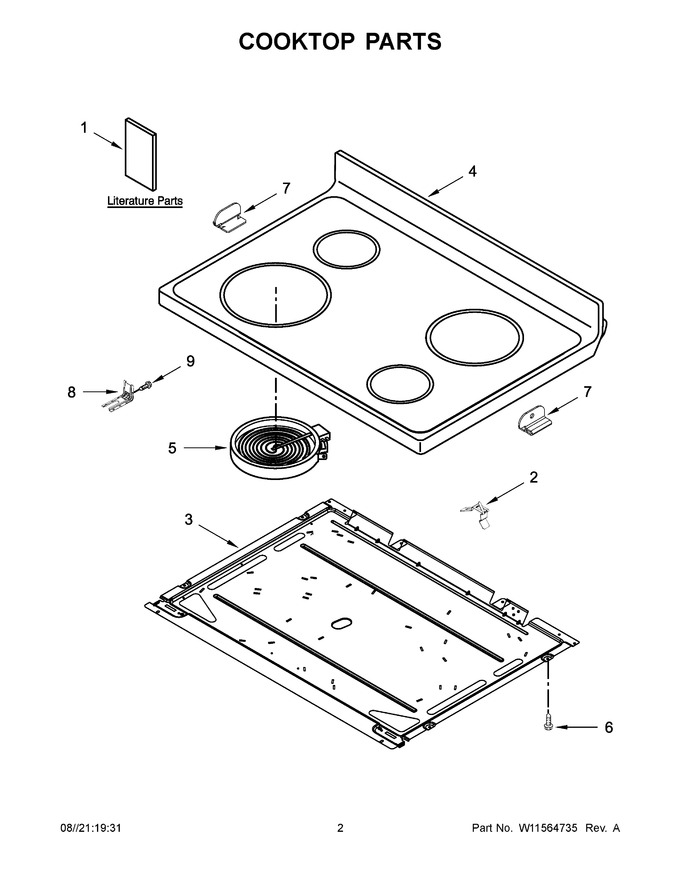

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11393928 | Tech Sheet |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 129.14 | ||||
| 4 | W10906139 | Cooktop (white) (Replaces: W10853442) |
|
$ 527.62 | |||||
| 5 | WP8273993 | Element (1800w) (left Front And Right Rear) (Replaces: 8273993) |
|
Immediately | $ 258.96 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | W10607641 | Bracket, Cooktop (left) |
|
$ 30.17 | |||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 25.69 | ||||
| 9 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 1A | W11432241 | User Instructions |
|
- | |||||
| 5A | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: W10248261) |
|
Immediately | $ 203.06 | ||||
| 7A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | W11596058 | Harness, Cooktop (right) (Replaces: W11134551) |
|
Immediately | $ 31.28 | ||||
| NI | W11171894 | Harness, Cooktop (left) |
|
$ 205.20 | |||||
| NI | W11452628 | Harness, Wire (main) |
|
$ 167.88 |
