01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

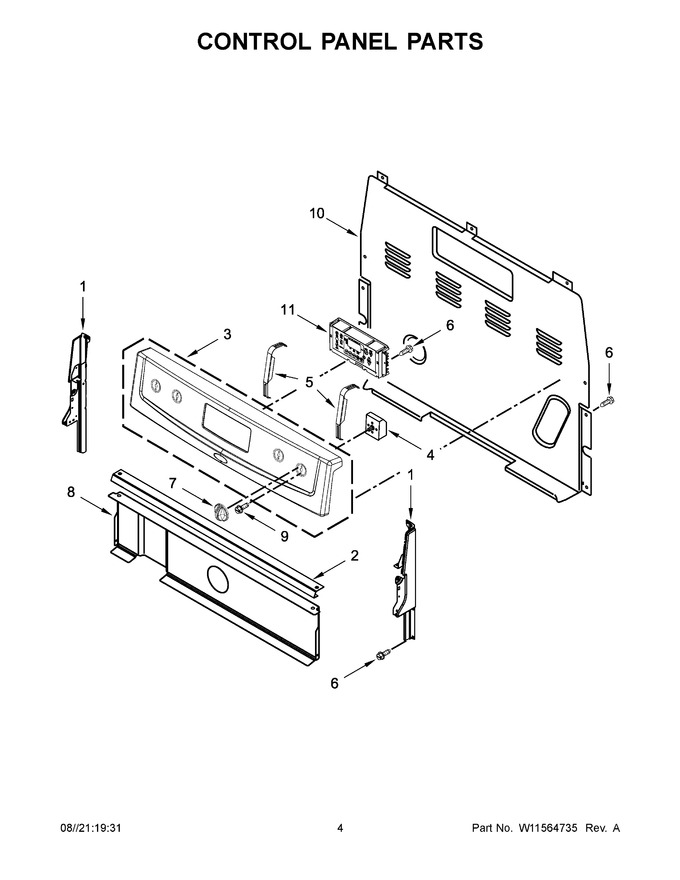

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left)) (Replaces: W11130371) |
|
$ 38.21 | |||||
| 2 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 3 | W11252172 | Panel, Console (white) (Replaces: W11157016) |
|
$ 312.34 | |||||
| 4 | WP3148952 | Switch, Infinite (yellow) (right Front And Left Rear) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 5 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 76.33 | ||||
| 6 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 7 | W11188750 | Knobs (white) (Replaces: W10844800) |
|
$ 19.39 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W11536795 | Control, Electronic (lcx) (white) (Replaces: W11511570) |
|
Immediately | $ 266.53 | ||||
| 1A | W11219370 | Endcap (white (right)) (Replaces: W11130378) |
|
$ 54.75 | |||||
| 4A | 5500-287 | Switch, Infinite (green) (left Front And Right Rear) (Replaces: 3148953) |
|
Immediately | $ 49.03 |
