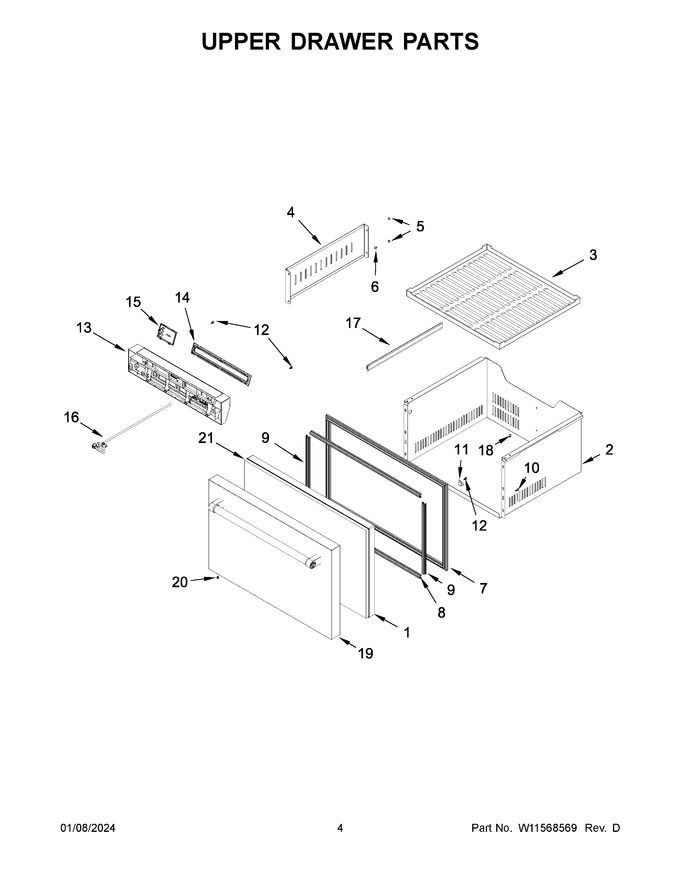

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11782148		Top Foamed Door Assembly   (Replaces: W11568830)			Immediately	$ 358.54
2	W11580273		Drawer Box Assembly, Upper   (Replaces: W11568832)		Appelez-nous	-
3	W11568835		Mat, Upper Drawer		Appelez-nous	-
4	W11579580		Drawer Partition   (Replaces: W11568836)		Appelez-nous	-
5	W10204920		Nut		Appelez-nous	-
6	W10204810		Screw		Appelez-nous	-
7	W11568837		Gasket, Door		Appelez-nous	-
8	W11774798		Gasket, Sash (top/bottom)   (Replaces: W11360665)			Immediately	$ 105.57
9	W11579578		Door Gasket, Short   (Replaces: W11568838)		Appelez-nous	-
10	W10204808		Screw		Appelez-nous	-
11	W11579579		Plate, Door Handle   (Replaces: W11568839)		Appelez-nous	-
12	W11675284		Screw   (Replaces: W11371095)				$ 14.35
13	W11568936		Control Panel Assembly				$ 569.46
14	W11312450		Cover, Led		Appelez-nous	-
15	W11568841		Lamp Cover		Appelez-nous	-
16	W11592421		Harness   (Replaces: W11576360)				$ 224.70
17	W11568842		Support, Lead Wire				$ 32.81
18	W11422709		Screw		Appelez-nous	-
19	W11568932		Wrap, Stainless				$ 627.21
20	W10319185		Screw		Appelez-nous	-
21	W11579583		Insulation, Door   (Replaces: W11568934)		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11576386		Complete, Door Assembly				$ 1,098.67
