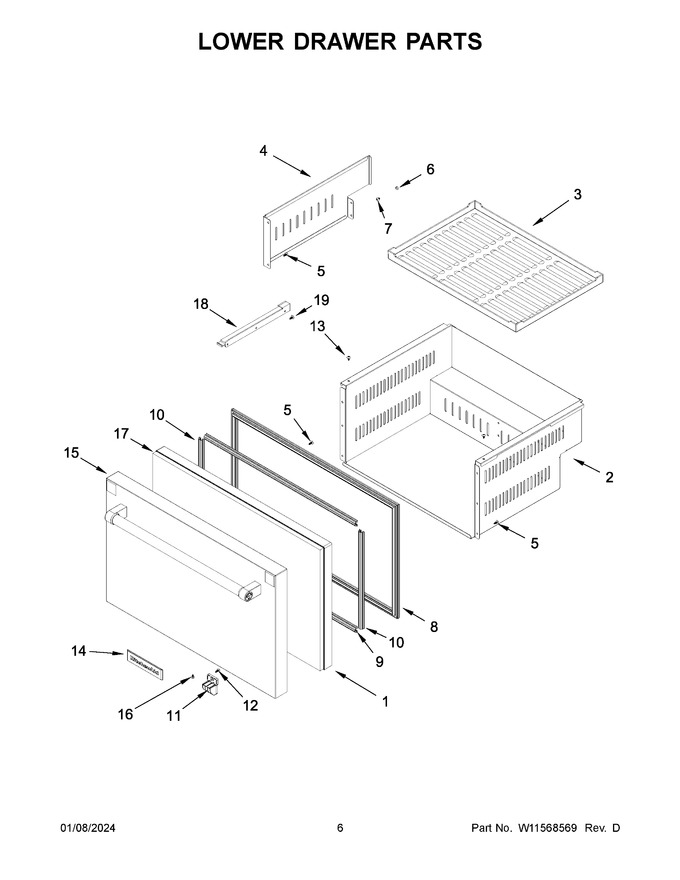

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11802491		Door Assembly, Lower   (Replaces: W11568937)				$ 630.64
2	W11568938		Drawer Box Assembly, Bottom		Appelez-nous	-
3	W11568945		Mat, Lower Drawer		Appelez-nous	-
4	W11592416		Bottom Drawer Partition   (Replaces: W11568946)		Appelez-nous	-
5	W10204809		Screw		Appelez-nous	-
6	W10204920		Nut		Appelez-nous	-
7	W10204810		Screw		Appelez-nous	-
8	W11568947		Gasket				$ 106.53
9	W11774798		Gasket, Sash (top/bottom)   (Replaces: W11360665)			Immediately	$ 105.57
10	W11579578		Door Gasket, Short   (Replaces: W11568838)		Appelez-nous	-
11	W11678576		Plate, Push   (Replaces: W11568796)			Immediately	$ 33.22
12	W11675284		Screw   (Replaces: W11371095)				$ 14.35
13	W11422709		Screw		Appelez-nous	-
14	W11179312		Nameplate   (Replaces: W10772910)				$ 84.14
15	W11568932		Wrap, Stainless				$ 627.21
16	W10319185		Screw		Appelez-nous	-
17	W11579583		Insulation, Door   (Replaces: W11568934)		Appelez-nous	-
18	W11568762		Rail, Side (left Hand)		Appelez-nous	-
19	4344797		Screw		Appelez-nous	-
18A	W11568764		Rail, Side (right Hand)		Appelez-nous	-
NI	W11576925		Complete, Door Assembly		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
