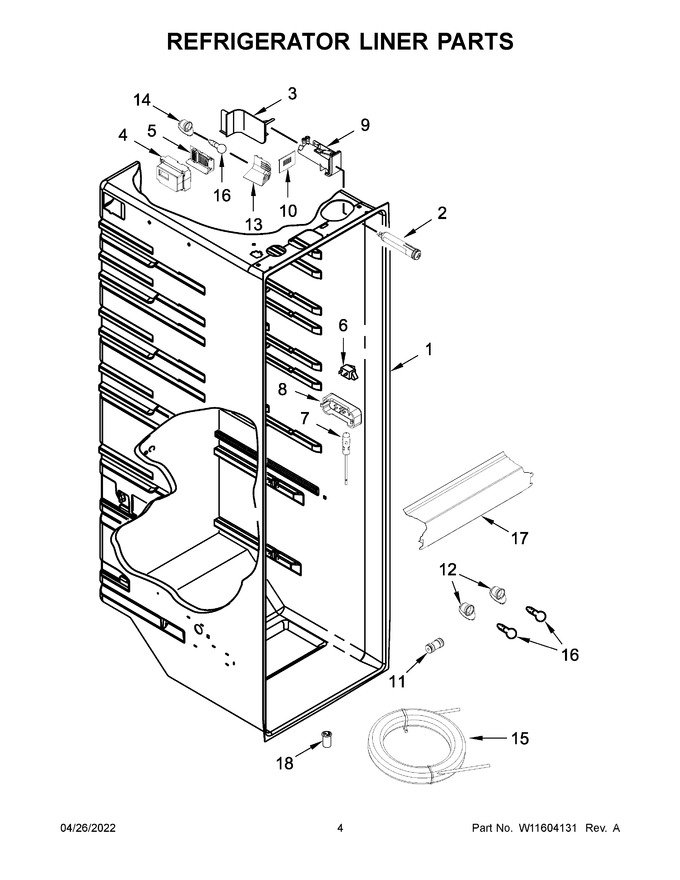

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Following Parts Not Illustrated		Appelez-nous	-
2	W10743248		Filter, Water		Appelez-nous	-
3	W11501035		Cover, Water Filter   (Replaces: W11389740)				$ 14.13
4	W11236851		Assembly, Air Diffuser   (Replaces: W11175955)			Immediately	$ 127.56
5	W10488360		Cover, Air Diffuser		Appelez-nous	-
6	W11384469		Switch, Light   (Replaces: W10847853)			Immediately	$ 35.18
7	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 30.24
8	W10425254		Cover, Thermistor		Appelez-nous	-
9	WPW10490293		Housing, Water Filter   (Replaces: W10490293)				$ 185.37
10	W10671655		Cover, Air Filter		Appelez-nous	-
11	WPW10271543		Connector, Water Tube   (Replaces: W10271543)			Immediately	$ 31.89
12	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 12.48
13	W10893232		Cover, Light		Appelez-nous	-
14	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 104.10
15	W11802492		Tubing, Water Reservoir   (Replaces: W11529425)				$ 80.02
16	W11216993		Lamp, Led   (Replaces: W11125625)			Immediately	$ 47.21
17	WPW10269099		Lens, Light   (Replaces: W10269099)				$ 115.21
18	WP2210509		Body, Valve Tube   (Replaces: 2171931)				$ 89.24
