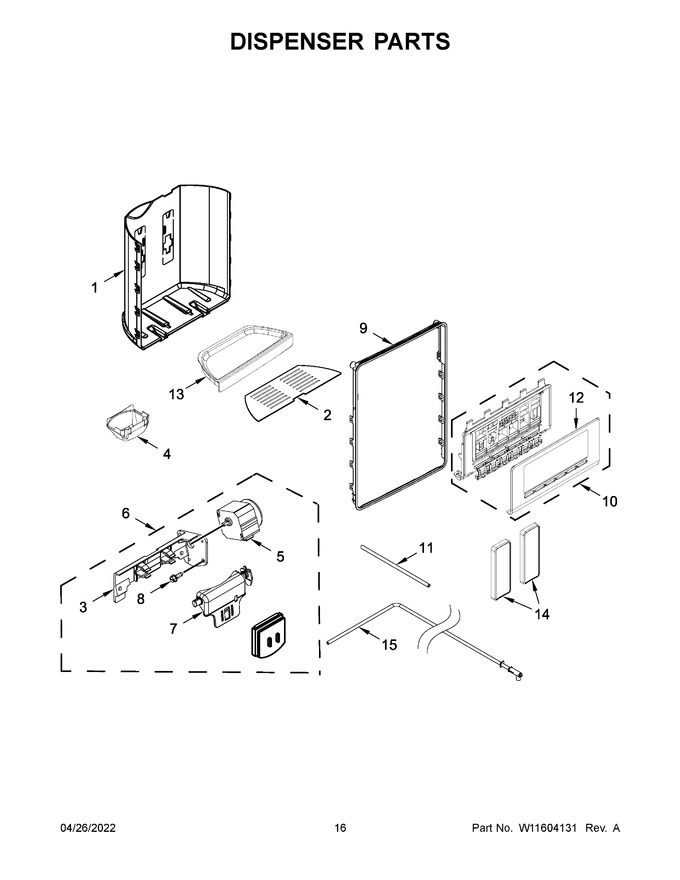

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10490264		Wall, Dispenser False (stainless)		Appelez-nous	-
2	WPW10469406		Grate, Drip Tray (grey)   (Replaces: W10469406)				$ 75.57
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Guide, Ice   (Replaces: W10435760)			Immediately	$ 23.94
5	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
6	W10889430		Assembly, Seperator   (Replaces: W10781995)				$ 159.79
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W11087882		Ring, Trim (chromium Frost)				$ 70.05
10	W11616410		Assembly, Stealth User Interface   (Replaces: W11503394)		Appelez-nous	-
11	W11533098		Tube, Dispenser Water Valve   (Replaces: W11269258)		Appelez-nous	-
12	W10854961		Cover, Front (black)   (Replaces: W10468079)		Appelez-nous	-
13	W10469422		Tray, Drip (grey)		Appelez-nous	-
14	W11684618		Pad, Ice And Water (grey)   (Replaces: W10460952)				$ 61.69
15	W11620106		Tube, Water   (Replaces: W10691730)				$ 117.84

    View Diagram in Separate Window       Print Part List
