01 - Cover Sheet

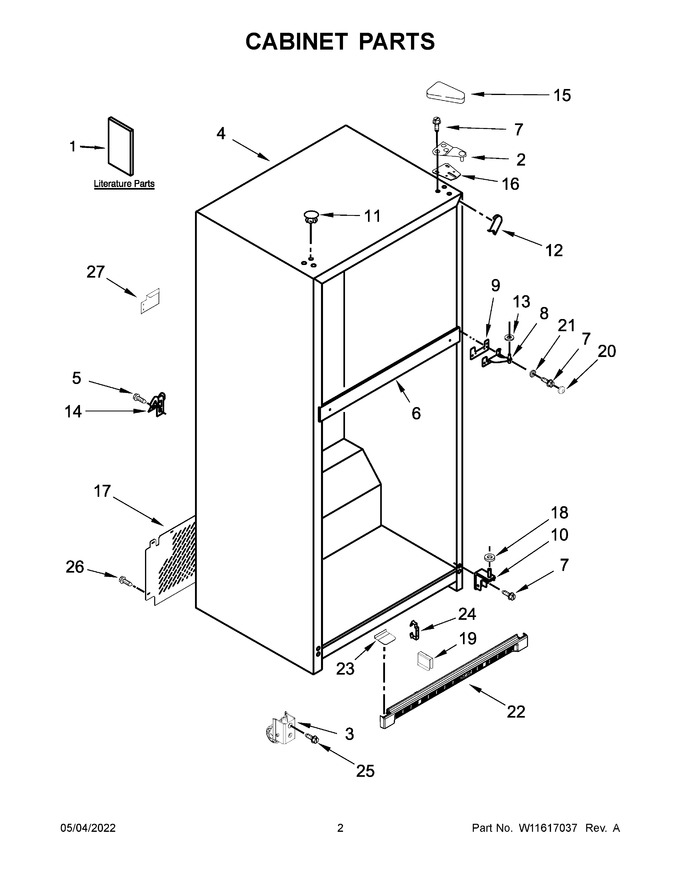

02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11511784 | Tech Sheet |
|
- | |||||
| 2 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 107.48 | ||||
| 3 | W10849386 | Assembly, Roller (Replaces: W10725960) |
|
$ 103.28 | |||||
| 4 | NP | Rail, Center (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 6 | NP | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 9 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 10 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
$ 8.35 | |||||
| 11 | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 6.80 | ||||
| 12 | W11219642 | Filler, Wrapper (grey) |
|
Immediately | $ 11.57 | ||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 14 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 19.91 | |||||
| 15 | W10853622 | Cover, Hinge(grey) (Replaces: 2254510) |
|
Immediately | $ 74.21 | ||||
| 16 | W11169703 | Hinge Shim (white) (Replaces: 2221885) |
|
$ 14.21 | |||||
| 17 | W11307290 | Cover, Unit |
|
- | |||||
| 18 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 19 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.38 | |||||
| 20 | W10849198 | Cap, Dome (grey) (Replaces: W10679139) |
|
$ 17.30 | |||||
| 21 | W10847959 | Cap, Washer Dome (Replaces: W10674773) |
|
$ 10.14 | |||||
| 22 | W10860791 | Grille (grey) (Replaces: W10592144) |
|
$ 75.92 | |||||
| 23 | W10468611 | Cover, Toe Grille (grey) |
|
Immediately | $ 91.85 | ||||
| 24 | 2254385 | Clip, Grille |
|
$ 79.98 | |||||
| 25 | 3400524 | Screw (Replaces: W10142287) |
|
$ 11.95 | |||||
| 26 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 27 | W11528668 | Access Cover, Valve (Replaces: W11458717) |
|
- | |||||
| 1A | W11507956 | Use And Care Guide |
|
- | |||||
| 1B | W11337398 | Energy Guide |
|
- |
