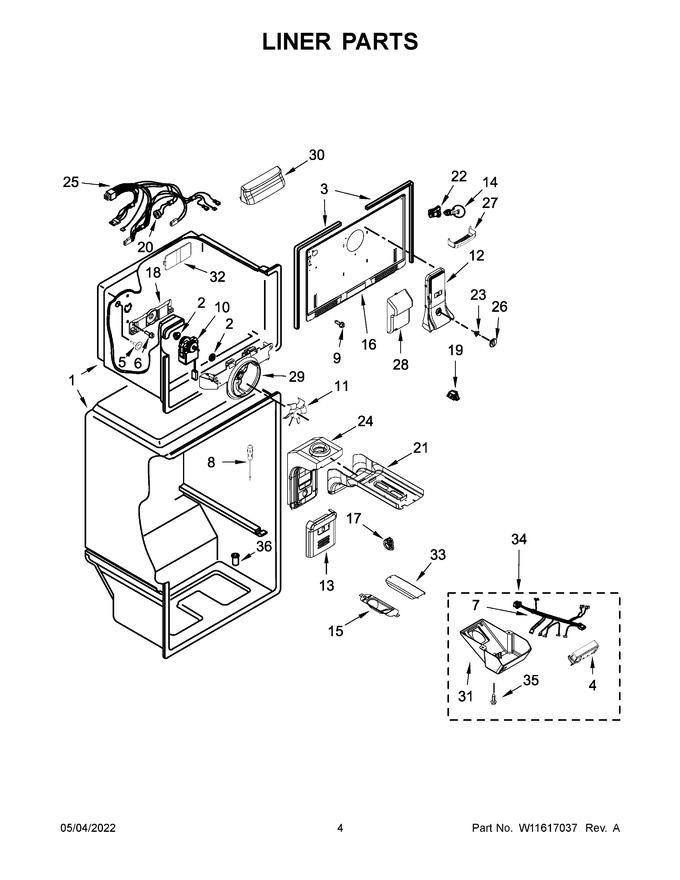

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NM | Liner (not Serviced) |
|
- | |||||
| 2 | NP | Rail, Center (not Serviced) |
|
- | |||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254360) |
|
$ 25.31 | |||||
| 4 | W11613574 | Control, Adaptive Defrost (Replaces: W11476563) |
|
Immediately | $ 289.85 | ||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 7.23 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 7 | W11441783 | Assembly, Control Box Wire (Replaces: W11203362) |
|
$ 122.68 | |||||
| 8 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 9 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 9.30 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 88.26 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | W10707377 | Air Tower, Fc |
|
$ 91.30 | |||||
| 13 | W10609502 | Cup, Air Diffuser |
|
$ 35.90 | |||||
| 14 | W11518235 | Lamp, Led (Replaces: W11160686) |
|
Immediately | $ 26.36 | ||||
| 15 | W10300161 | Shield, Light |
|
Immediately | $ 86.96 | ||||
| 16 | W10617507 | Cover, Evaporator |
|
$ 196.61 | |||||
| 17 | W11577968 | Module, Led (Replaces: W11429584) |
|
Immediately | $ 41.92 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 67.90 | ||||
| 19 | W11384469 | Switch, Light (Replaces: W10847853) |
|
Immediately | $ 35.18 | ||||
| 20 | NP | Rail, Center (not Serviced) |
|
- | |||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 102.92 | |||||
| 22 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 32.24 | ||||
| 23 | W11206112 | Baffle, Air Manual (Replaces: W10662269) |
|
$ 76.99 | |||||
| 24 | W11829838 | Assembly, Multiflow (Replaces: W10883330) |
|
$ 69.60 | |||||
| 25 | W11609466 | Assembly, Freezer Wire (Replaces: W11314510) |
|
Immediately | $ 74.30 | ||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 82.67 | |||||
| 27 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 85.81 | ||||
| 28 | W11562261 | Cover, Water Tube (Replaces: W11341625) |
|
$ 7.11 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 29.22 | ||||
| 30 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 81.96 | ||||
| 31 | W10841668 | Box, Control |
|
$ 91.99 | |||||
| 32 | W10336009 | Cup, Screw |
|
$ 69.66 | |||||
| 33 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 106.16 | |||||
| 34 | W11613298 | Box, Control (includes Overlay) (Replaces: W11476574) |
|
$ 183.03 | |||||
| 35 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.57 | |||||
| 36 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 89.24 |
