01 - Cover Sheet

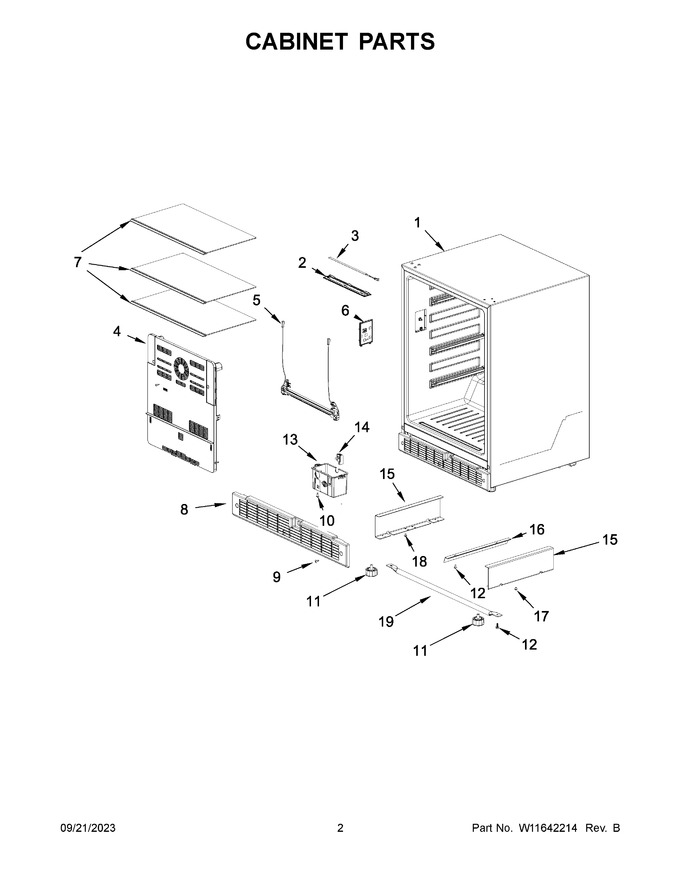

02 - Cabinet Parts
03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI312DF4305528C9341C495E6332910255 | Cabinet (not A Service Part) |
|
- | |||||
| 2 | W11312450 | Cover, Led |
|
- | |||||
| 3 | W11633775 | Led Assembly (Replaces: W11407975) |
|
$ 339.97 | |||||
| 4 | W11633775 | Cover Assembly, Evaporator |
|
$ 339.97 | |||||
| 5 | W11312455 | Assembly, Fan Cover (includes Fan Motor,and Sensor) |
|
$ 240.29 | |||||
| 6 | W11265409 | Assembly, Control (Replaces: W11263883) |
|
- | |||||
| 7 | W11266373 | Glass Shelf (Replaces: W11263886) |
|
- | |||||
| 8 | W11265404 | Defrost Heater And Holder (Replaces: W11263845) |
|
- | |||||
| 9 | W11675284 | Screw (Replaces: W11371095) |
|
$ 14.35 | |||||
| 10 | W11371097 | Screw |
|
- | |||||
| 11 | W11106296 | Leg, Leveling (Replaces: 4344763) |
|
$ 17.13 | |||||
| 12 | W11371100 | Screw |
|
- | |||||
| 13 | W11476540 | Control Box, Switch |
|
$ 51.82 | |||||
| 14 | W11266082 | Switch, Door (Replaces: W11265587) |
|
Immediately | $ 36.73 | ||||
| 15 | W11313093 | Support, Side |
|
- | |||||
| 16 | W11265577 | Seal, Condenser |
|
- | |||||
| 17 | W11371101 | Screw |
|
- | |||||
| 18 | W11371103 | Screw |
|
- | |||||
| 19 | W11265575 | Brace |
|
- |
