SELECT A DIAGRAM

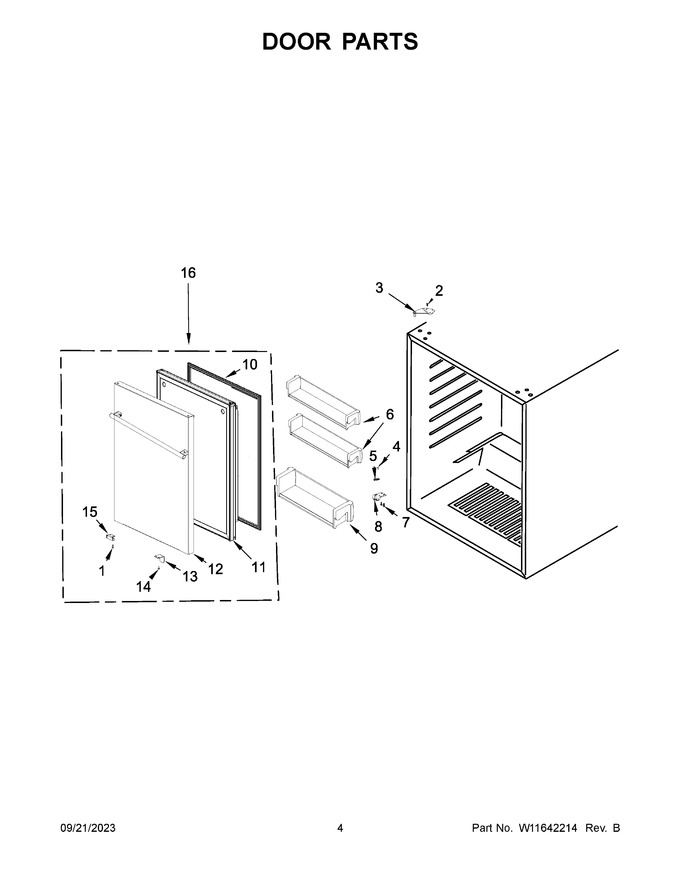

01 - Cover Sheet


02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11371345		Screw				$ 12.27
2	4344796		Screw				$ 15.14
3	W11312624		Hinge, Bottom				$ 68.46
4	W11371338		Screw		Appelez-nous	-
5	W11265406		Washer   (Replaces: W11264644)				$ 14.04
6	W10319176		Door Bin, Middle		Appelez-nous	-
7	W11371100		Screw		Appelez-nous	-
8	W11312624		Hinge Mount   (Replaces: W11264645)				$ 68.46
9	W10319175		Door Bin, Lower		Appelez-nous	-
10	W11315259		Gasket, Door   (Replaces: W11312621)				$ 280.37
11	W11264643		Door Assembly		Appelez-nous	-
12	W11265413		Wrap, Door (stainless)   (Replaces: W11264683)				$ 621.75
13	W11264669		Actuator, Switch				$ 63.39
14	W11371097		Screw		Appelez-nous	-
15	W11264678		Door Stop		Appelez-nous	-
16	W11613589		Door Assembly, Complete   (Replaces: W11462011)				$ 779.42

    View Diagram in Separate Window       Print Part List
