View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Console And Cabinet Parts
03 - Door Parts
04 - Pump Parts
05 - Dispenser Parts
06 - Tub And Drive Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

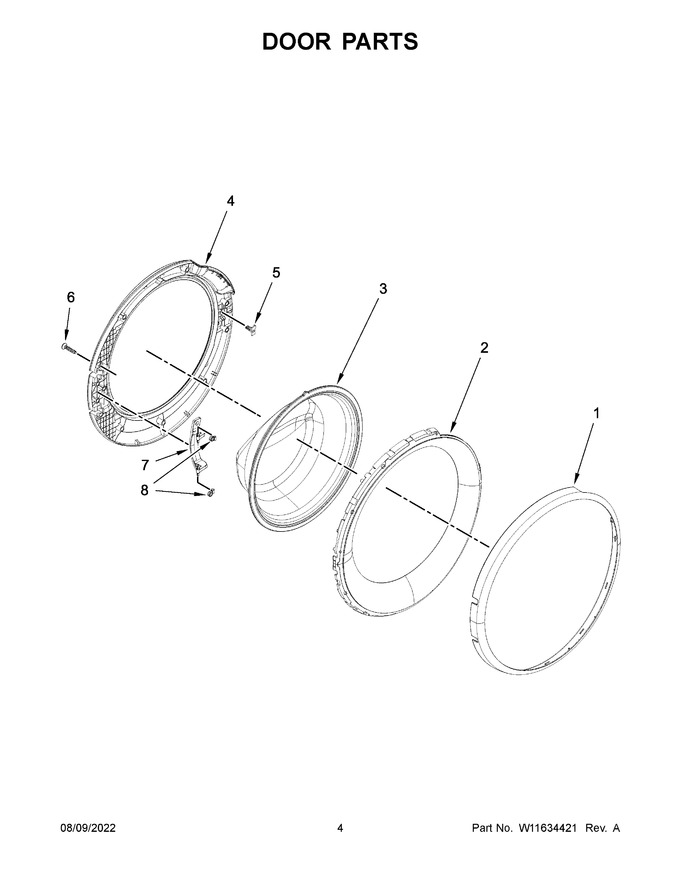

| 1 | W11038323 | Door, Outer Trim Ring (Replaces: W10564923) |
|
$ 81.37 | |||||
| 2 | W11038324 | Door, Inner Trim (Replaces: W10564947) |
|
$ 338.91 | |||||
| 3 | W11038325 | Door, Glass (Replaces: W10765495) |
|
$ 141.30 | |||||
| 4 | W11038326 | Door, Inner (Replaces: W10564912) |
|
$ 83.59 | |||||
| 5 | W10564917 | Strike, Door |
|
$ 23.63 | |||||
| 6 | 251921201061 | Screw |
|
$ 23.58 | |||||
| 7 | W10564919 | Hinge, Door |
|
$ 172.13 | |||||
| 8 | 461971424051 | Bushing, Hinge (outer) |
|
$ 23.74 |
