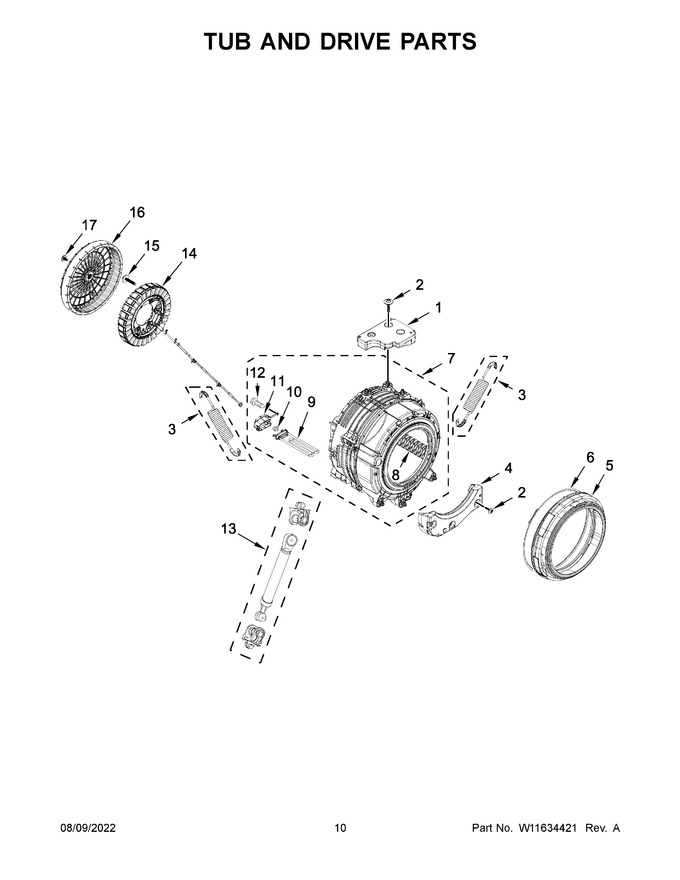

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11039160 | Counterweight, Top (Replaces: 461971409631) |
|
- | |||||
| 2 | 461971409681 | Screw |
|
$ 25.15 | |||||
| 3 | W11690625 | Spring, Suspension (includes Retainer Clips) (Replaces: W10816225) |
|
Immediately | $ 56.13 | ||||
| 4 | W11044835 | Counterweight, Front (Replaces: 461971421191) |
|
- | |||||
| 5 | W11044836 | Bellow (Replaces: W10761129) |
|
$ 167.58 | |||||
| 6 | 461971408821 | Retainer, Bellow - Tub |
|
$ 26.65 | |||||
| 7 | W11025351 | Tub (Replaces: W11356812) |
|
Immediately | $ 394.45 | ||||
| 8 | W11690624 | Lifter (Replaces: W10597314) |
|
$ 30.95 | |||||
| 9 | W10847365 | Heating Element |
|
Immediately | $ 191.46 | ||||
| 10 | W11676452 | Sensor Ntc (Replaces: 461971068751) |
|
Immediately | $ 27.38 | ||||
| 11 | W10884881 | Shield, Heat |
|
$ 29.97 | |||||
| 12 | 461975034901 | Screw (Replaces: 251924500002) |
|
- | |||||
| 13 | W11712679 | Damper Assembly (Replaces: W10754041) |
|
Immediately | $ 82.14 | ||||
| 14 | W11432752 | Stator (Replaces: W10884517) |
|
$ 387.85 | |||||
| 15 | W10780181 | Screw |
|
$ 13.14 | |||||
| 16 | W11044837 | Rotor (Replaces: W10706381) |
|
Immediately | $ 279.23 | ||||
| 17 | W10655372 | Bolt, Rotor |
|
$ 7.54 |
