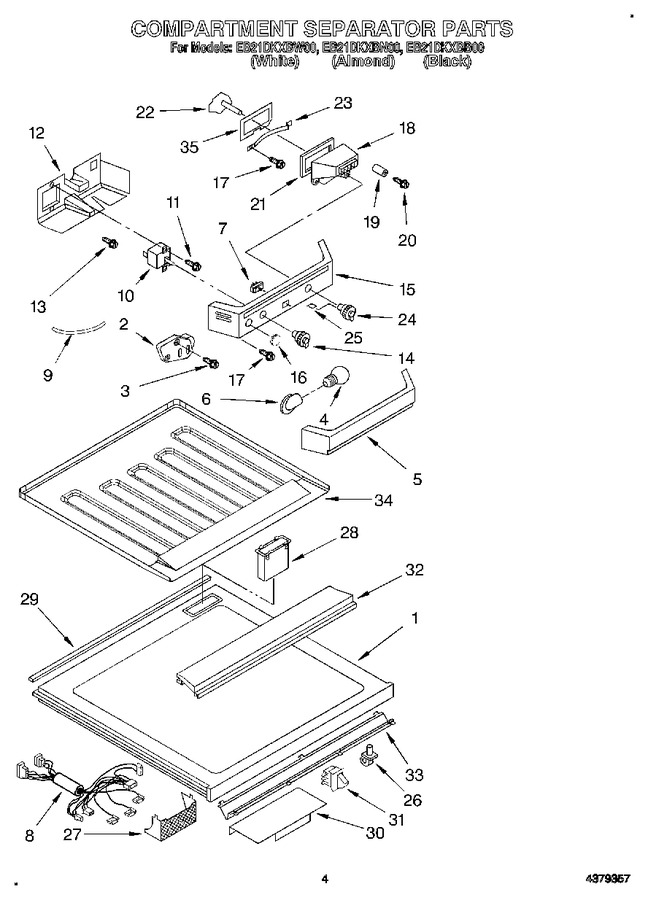

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2152764		Compartment Separator Assembly (includes Center Rail And Heater Assembly)		Appelez-nous	-
2	WP2183400		Defrost Timer   (Replaces: 2162052)			Immediately	$ 88.87
3	489386		Screw				$ 664.51
4	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
5	983910		Light Lens		Appelez-nous	-
6	4387478		Light Socket   (Replaces: 851067)			Immediately	$ 115.67
7	938049		Switch, Toggle		Appelez-nous	-
8	2152787		Wiring Assembly, Control Box		Appelez-nous	-
9	WP2196003		Thermostat Tube Barrier   (Replaces: 513573)				$ 8.35
10	WP4317800		Thermostat   (Replaces: 2164524)			Immediately	$ 278.68
11	488974		Screw, 8-15 X 3/8		Appelez-nous	-
12	2152896		Bracket, Thermostat		Appelez-nous	-
13	488974		Screw, 8-32 X 3/8		Appelez-nous	-
14	2148656		Control Knob		Appelez-nous	-
15	2148654		Control Panel		Appelez-nous	-
16	2148655		Hole Plug		Appelez-nous	-
17	WP489478		Screw   (Replaces: 489242)				$ 8.18
18	2160470		Air Diffuser Assembly		Appelez-nous	-
19	836667		Spacer		Appelez-nous	-
20	WP488163		Screw, 8 X 1   (Replaces: 488163)				$ 7.92
21	2160428		Gasket		Appelez-nous	-
22	984658		Damper, Air				$ 8.39
23	836493		Retainer, Air Damper		Appelez-nous	-
24	2148657		Knob, Air Diffuser (includes Item 25)		Appelez-nous	-
25	837444		Knob, Retainer		Appelez-nous	-
26	2155555		Stud		Appelez-nous	-
27	983359		Light Lens		Appelez-nous	-
28	987019		Insert, Air Return		Appelez-nous	-
29	1116698		Gasket, Comp. Sep.		Appelez-nous	-
30	2149068		Lens-light		Appelez-nous	-
31	W11457217		Switch   (Replaces: 1115373)				$ 40.09
32	1121213		Separator Top-front		Appelez-nous	-
33	2160531		Air Deflector		Appelez-nous	-
34	2152789		Separator, Top-rear		Appelez-nous	-
35	2160454		Gasket, Damper		Appelez-nous	-
