SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door

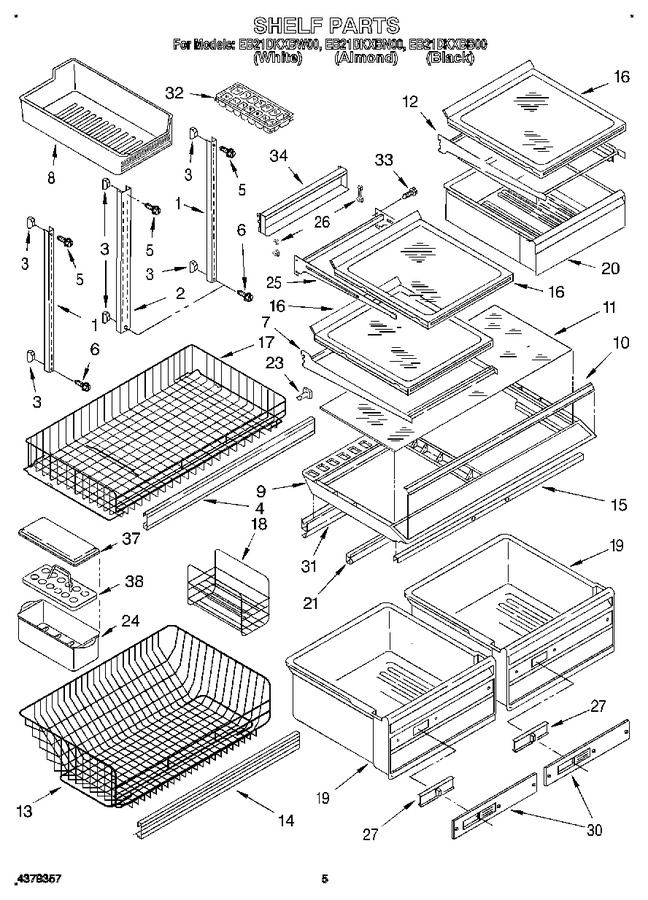

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1127413		Shelf, Ladder (2)		Appelez-nous	-
2	1127414		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 31.35
4	2162836		Trim, Basket		Appelez-nous	-
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4   (Replaces: 488163)				$ 7.92
7	2160306		Shelf, Cantilever		Appelez-nous	-
8	W11625904		Ice Cube Pan   (Replaces: 2170533)				$ 67.83
9	2162910		Crisper Cover		Appelez-nous	-
10	2162846		Trim, Crisper Cover		Appelez-nous	-
11	2162981		Glass, Crisper Cover		Appelez-nous	-
12	2166327		Pan Shelf, Cantilever		Appelez-nous	-
13	2152799		Freezer Basket, (lower)		Appelez-nous	-
14	2162837		Trim, Basket		Appelez-nous	-
15	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 102.08
16	2160318		Shelf Assembly, Spillguard		Appelez-nous	-
17	2152802		Freezer Basket (upper)		Appelez-nous	-
18	2152823		Rack, Ice Tray		Appelez-nous	-
19	2162857		Pan, Crisper		Appelez-nous	-
20	2162930		Pan, Meat		Appelez-nous	-
21	1116512		Gasket-front		Appelez-nous	-
23	1106612		Shelf Stud (2)				$ 7.56
24	W10136387A		Egg Bin   (Replaces: 2170522)				$ 19.54
25	2169603		Shelf Assembly, Spillguard		Appelez-nous	-
26	2169608		Hook, Shelf		Appelez-nous	-
27	2162849		Slide, Humidity Control		Appelez-nous	-
30	2162851		Crisper Front		Appelez-nous	-
31	1105653		Gasket, Rear		Appelez-nous	-
32	WP841180A		Ice Cube Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
33	489419		Screw		Appelez-nous	-
34	2169793		Track Assembly, Shelf		Appelez-nous	-
37	2164374		Cover		Appelez-nous	-
38	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
38	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
38	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
38	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
38	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
38	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
38	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
38	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
38	2172762		Door Reversal Instructions		Appelez-nous	-
38	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
38	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
38	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
38	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
38	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
38	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	LIT2170984		Energy Guide		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref/frz		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2169125		Service & Wiring Sheet		Appelez-nous	-
	LIT2170894		Care & Use Guide		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	1129316		Eckmf90			Immediately	$ 149.11
	833938		Kit, Terminal Connector				$ 8.47
	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
