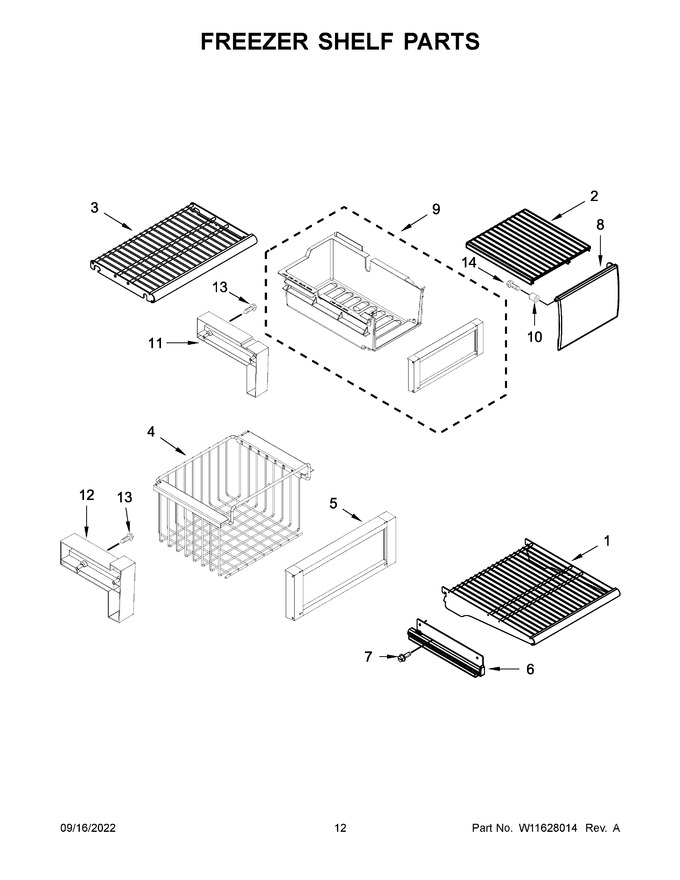

07 - Freezer Shelf Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11455935		Shelf, Wire				$ 194.50
2	W11527874		Cover, Shelf				$ 272.93
3	W11455933		Shelf, Fixed		Appelez-nous	-
4	W11690617		Assembly, Freezer Basket   (Replaces: W11452325)		Appelez-nous	-
5	W11452329		Assembly, Basket Front		Appelez-nous	-
6	WP2259318		Slide, Basket (left Hand)   (Replaces: 2259318)			Immediately	$ 285.62
7	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.43
8	W11764944		Door, Ice   (Replaces: W11452422)			Immediately	$ 153.01
9	W11452359		Assembly, Ice Bucket				$ 339.01
10	W10785704		Spacer, Ice Door   (Replaces: W11452423)				$ 13.07
11	W11511688		Spacer, Ice		Appelez-nous	-
12	W11630202		Spacer, Basket   (Replaces: W11511689)		Appelez-nous	-
13	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
14	W10784931		Screw (black)				$ 11.75
6A	2259317		Slide, Basket (right Hand)				$ 209.96
