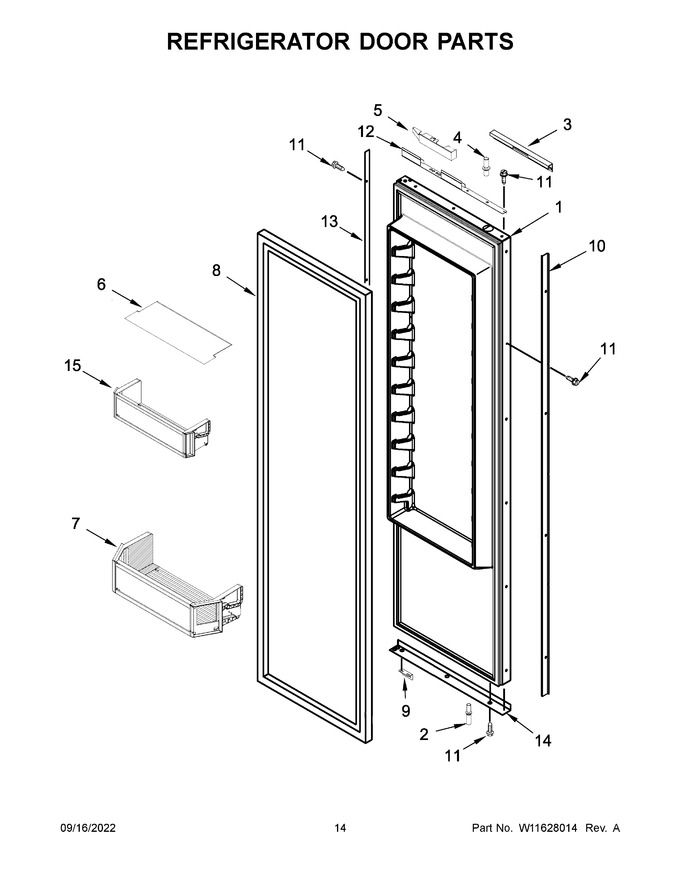

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11797635		Door, Refrigerator (includes Item 8)   (Replaces: W10783287)				$ 842.43
2	W11337869		Pin, Bottom Door				$ 58.42
3	W10775726		Cover, Top Door				$ 142.65
4	W10234194		Pin, Top Door				$ 15.89
5	W10606813		Insert, Door Arm Top (grey)				$ 32.74
6	W11454936		Mat, Door Bin (shallow)   (Replaces: W11454934)		Appelez-nous	-
7	W11450421		Bin, Gallon Door			Immediately	$ 377.03
8	W10800810		Gasket, Door (black)   (Replaces: W10776012)			Immediately	$ 317.12
9	W10606841		Bracket, Panel Mounting (grey)				$ 35.83
10	W10755284		Trim, Door (handle Side) (charcoal)				$ 200.12
11	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 7.32
12	W10776481		Trim, Top Door				$ 211.34
13	W10749614		Trim, Door (hinge Side) (charcoal)				$ 204.51
14	W10755292		Trim, Bottom Door		Appelez-nous	-
15	W11450407		Bin, Shallow Door			Immediately	$ 369.84
6A	W11454936		Mat, Door Bin (gallon)   (Replaces: W11454932)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
