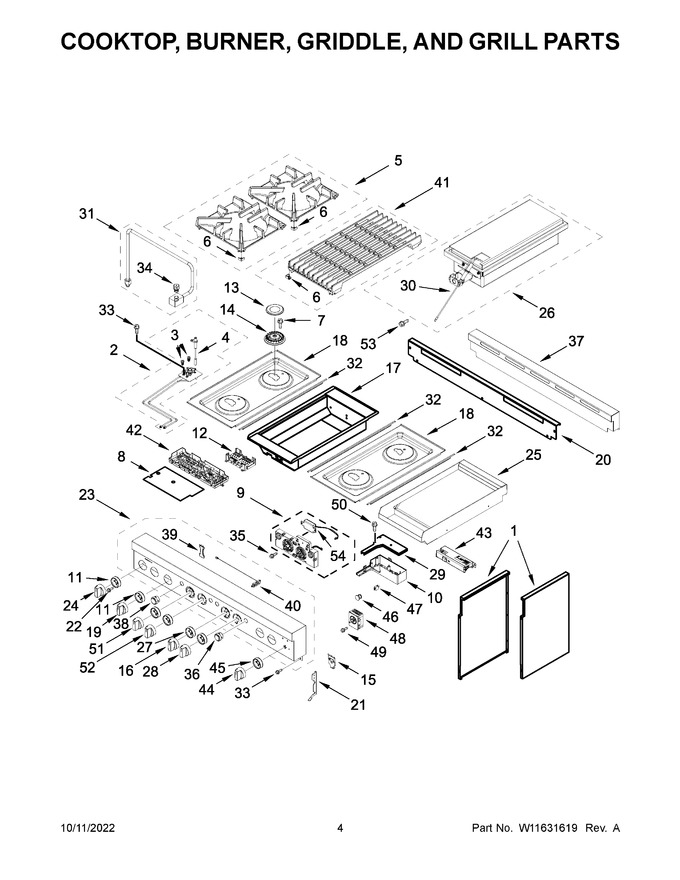

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 395.43
2	W11319741		Assembly, Orifice Holder (left Front)   (Replaces: W10892807)				$ 109.49
3	W11643164		Orifice, Main (17.4k) (left Front, Right Front)   (Replaces: W10892422)			Immediately	$ 58.69
4	W11573760		Igniter (left Front, Right Front)   (Replaces: W11238757)			Immediately	$ 21.13
5	W11515370		Assembly, Grate (black (set Of 2))   (Replaces: W11291176)				$ 354.90
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 11.31
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 11.45
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 117.51
9	W11492275		Interface, User   (Replaces: W11436326)			Immediately	$ 516.55
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11316873		Brass (for 4 Cooktop Burners And Grill)   (Replaces: W11090283)			Immediately	$ 44.36
12	W11355250		Manager, Appliance (expansion)   (Replaces: W10871065)				$ 406.46
13	W11328971		Cap, Burner (black (set Of 4))   (Replaces: W11121391)				$ 156.06
14	W11319683		Spreader, Flame (high) (all But Right Center Rear)   (Replaces: W10891987)			Immediately	$ 225.62
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 11.59
16	W11574370		Knob, Oven Mode (stainless (for 30 In Oven))   (Replaces: W11496094)				$ 83.80
17	W11328566		Assembly, Grill Box   (Replaces: W11174429)		Appelez-nous	-
18	W11316696		Panel, Cooktop (black (left))   (Replaces: W10803515)				$ 461.91
19	W11620700		Knob, Grill (stainless)   (Replaces: W11496090)		Appelez-nous	-
20	W10323252		Trim, Island Insert				$ 187.05
21	W10130760		Bracket, Moving Console (left)				$ 68.35
22	W11509770		Screw   (Replaces: W11328357)				$ 12.81
23	W11444450		Console Assembly (stainless)   (Replaces: W10878259)				$ 930.89
24	W11574368		Knob, Burner (for 4 Cooktop Burners) (stainless)   (Replaces: W11496088)			Immediately	$ 83.19
25	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
26	W11328568		Assembly, Grill Burner   (Replaces: W11120976)				$ 764.05
27	W11317499		Bezel, Oven (for 4 Oven Knobs) (stainless)   (Replaces: W10914998)				$ 25.22
28	W11574369		Knob, Oven Temperature (stainless (for 30 In Oven))   (Replaces: W11496091)				$ 106.21
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11328571		Electrode, Grill   (Replaces: W11174598)		Appelez-nous	-
31	W11517686		Grill Orifice Holder Assembly (left Center)   (Replaces: W11419278)		Appelez-nous	-
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W11419282		Orifice, Grill (18k) (left Center)		Appelez-nous	-
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.16
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 21.30
37	W11516014		Island Trim   (Replaces: W11476244)				$ 399.24
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 21.43
39	W11318856		Assembly, Light Pipe   (Replaces: W10896369)				$ 98.42
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 206.03
41	W11515378		Grill Grate Assembly   (Replaces: W11291177)		Appelez-nous	-
42	W11620696		Manager, Powermax Appliance   (Replaces: W11543349)				$ 427.25
43	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 161.90
44	W11620693		Knob, Griddle (stainless)   (Replaces: W11496089)		Appelez-nous	-
45	W11317495		Bezel, Griddle   (Replaces: W11104966)				$ 49.75
46	W10294500		Lens, Indicator Light				$ 6.92
47	W10116114		Light, Indicator Housing			Immediately	$ 84.21
48	W11318834		Control, Griddle   (Replaces: W11033497)			Immediately	$ 320.87
49	7101P30960		Screw		Appelez-nous	-
50	7101P62460		Screw		Appelez-nous	-
51	W11591511		Knob, Oven Mode (stainless (for 18 In Oven))   (Replaces: W11496095)				$ 102.28
52	W11620695		Knob, Oven Temperature (stainless (for 18 In Oven))   (Replaces: W11496096)		Appelez-nous	-
53	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
54	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
14A	W11319673		Spreader, Flame (low) (right Center Rear)   (Replaces: W10892022)			Immediately	$ 206.51
18A	W11316697		Panel, Cooktop (black (right Center))   (Replaces: W10803519)				$ 451.81
1A	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 405.28
21A	W10130759		Bracket, Moving Console (right)				$ 68.35
2A	W11319746		Assembly, Orifice Holder (left Rear)   (Replaces: W10892495)				$ 111.52
2B	W11319743		Assembly, Orifice Holder (right Center Front)   (Replaces: W10892505)				$ 112.62
2C	W11328970		Assembly, Orifice Holder (right Center Rear)   (Replaces: W10892721)		Appelez-nous	-
3A	W10892418		Orifice, Main (15.4k) (left Rear)			Immediately	$ 92.73
3B	W10892440		Orifice, Main (7.2k) (right Center Rear)				$ 89.87
3C	W11661909		Orifice, Simmer (2.6k) (left Front, Right Front)   (Replaces: W10892435)			Immediately	$ 67.52
3D	W10892429		Orifice, Simmer (2.0k) (right Center Rear)				$ 89.87
4A	W11238756		Igniter (right Center Rear)			Immediately	$ 61.16
