SELECT A DIAGRAM

01 - Cover Sheet


02 - Burner Box, Griddle, And Grill Parts


03 - Cooktop, Burner, Griddle, And Grill Parts


04 - Chassis Parts

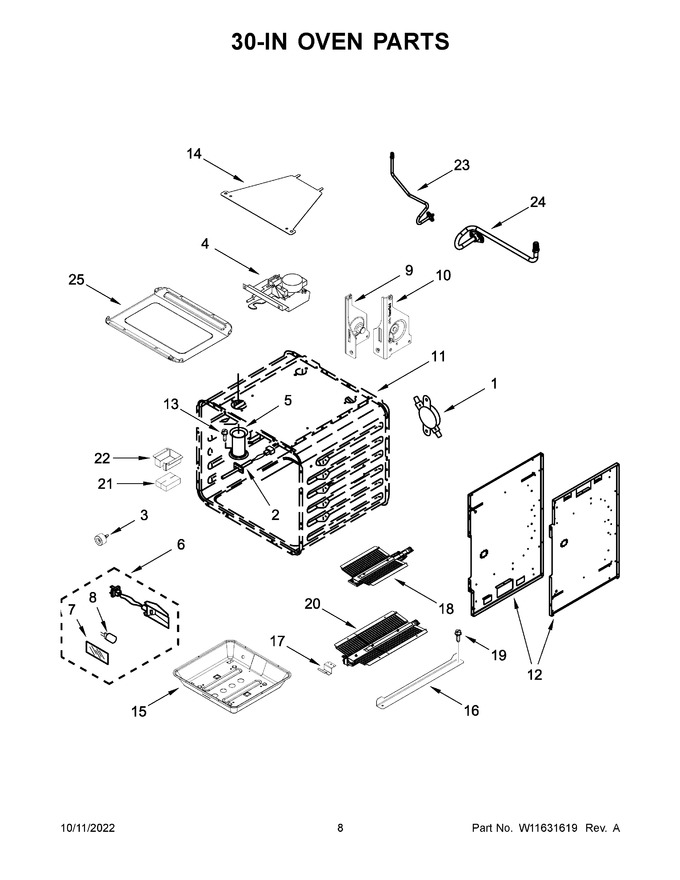

05 - 30-in Oven Parts


06 - 18-in Oven Parts


07 - Venting Parts


08 - 30-in Oven Door Parts


09 - 18-in Oven Door Parts


10 - 30-in Internal Oven Parts


11 - 18-in Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4450249		Thermostat (tod)   (Replaces: 4450249)			Immediately	$ 190.35
2	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 143.11
3	WPW10351278		Bumper And Screw   (Replaces: W10351278)				$ 9.91
4	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 294.89
5	W10145743		Tube, Vent		Appelez-nous	-
6	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 100.20
7	W10169756		Lens, Light				$ 37.97
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 46.52
9	W11096294		Receiver, Hinge (left)		Appelez-nous	-
10	W11096293		Receiver, Hinge (right)		Appelez-nous	-
11	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
12	W11320145		Chassis, Side (left)   (Replaces: W11102297)				$ 228.93
13	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
14	W10160858		Cover, Latch				$ 69.25
15	WPW10145744		Support, Bake Pan   (Replaces: W10145744)				$ 192.74
16	W10317437		Bracket, Broil Standoff		Appelez-nous	-
17	W10308040		Bracket, Bake Burner		Appelez-nous	-
18	W11643161		Burner, Bake   (Replaces: W10878504)			Immediately	$ 166.63
19	7101P43460		Screw		Appelez-nous	-
20	W11661180		Burner, Broil   (Replaces: W10311335)				$ 158.34
21	W11688851		Insulation, Broil Cover   (Replaces: W10311009)		Appelez-nous	-
22	W10310985		Cover, Broil		Appelez-nous	-
23	W11355244		Tube, Broil   (Replaces: W11109238)				$ 167.03
24	W11355919		Tube, Bake   (Replaces: W11106980)			Immediately	$ 162.57
25	W11661576		Pan, Oven Bottom   (Replaces: W10496809)			Immediately	$ 155.80
12A	W11320144		Chassis, Side (right)   (Replaces: W11102296)				$ 221.99
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.52
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11684890		Insulation, Bottom   (Replaces: W10299354)		Appelez-nous	-
NI	W11688580		Insulation, Back, (30 In)   (Replaces: W10299350)		Appelez-nous	-
NI	W11661177		Insulation, Wrap (30 In)   (Replaces: W10282810)				$ 146.25

    View Diagram in Separate Window       Print Part List
