01 - Front Cover

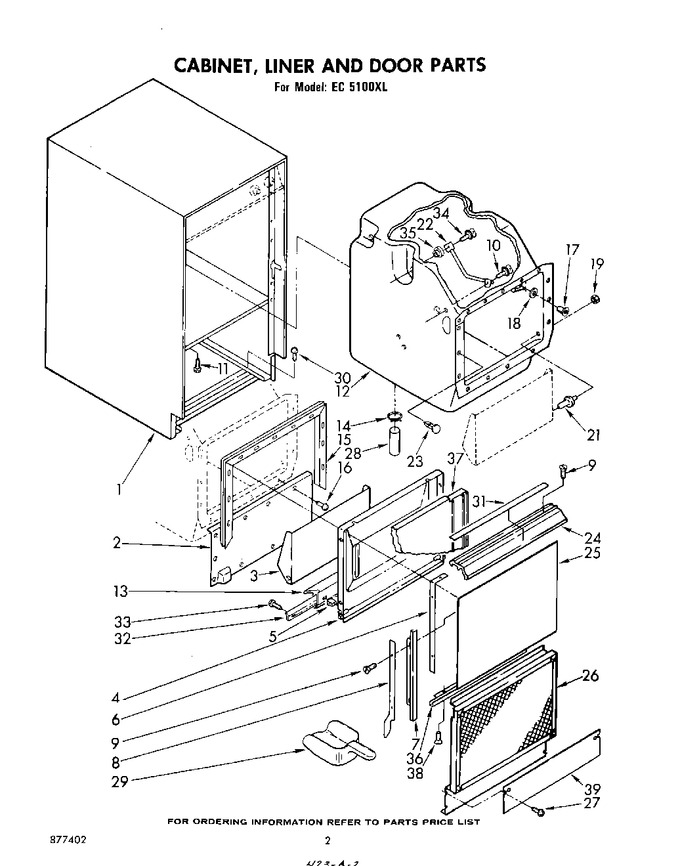

02 - Cabinet, Liner And Door , Lit/optional
03 - Evaporator, Ice Cutter Grid And Pump
04 - Pump
05 - Escutcheon And Control
06 - Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 757942 | Shell |
|
- | |||||
| 2 | 756563 | Front, Shell |
|
- | |||||
| 3 | 756330 | Door, Inner Bin |
|
- | |||||
| 4 | 593786 | Liner, Door |
|
- | |||||
| 5 | 593192 | Plug, Hinge |
|
- | |||||
| 6 | 593104 | Strip, Tapping (2) |
|
- | |||||
| 7 | 755675 | Trim, Door (r.s.) |
|
- | |||||
| 7 | 755676 | Trim, Door (l.s.) |
|
- | |||||
| 8 | 593184 | Rail, R.s. |
|
- | |||||
| 8 | 593185 | Rail, L.s. |
|
- | |||||
| 9 | 681459 | Screw, 8-32 X 5/8 (6) |
|
- | |||||
| 10 | 680930 | Thumbscrew |
|
- | |||||
| 11 | 681036 | Screw, Ground |
|
- | |||||
| 12 | 756350 | Liner (includes Illus. 17, 18, 19, 20 & 21) |
|
- | |||||
| 13 | 756347 | Gasket, Bottom |
|
- | |||||
| 14 | 596023 | Clamp (2) |
|
- | |||||
| 15 | 756663 | Gasket |
|
- | |||||
| 16 | WP965173 | Screw, 8-32 X 3/8 (Replaces: 595431) |
|
Immediately | $ 10.68 | ||||
| 17 | 680982 | Nut, Molly |
|
- | |||||
| 18 | 680902 | Washer |
|
- | |||||
| 19 | 681542 | Nut, 1/4 Hex |
|
- | |||||
| 21 | 758220 | Stud (2) |
|
- | |||||
| 22 | 593183 | Well, Bin Thermostat |
|
- | |||||
| 23 | 596772 | Clip, Panel (16) |
|
- | |||||
| 24 | 756662 | Pull, Door |
|
- | |||||
| 25 | 755364 | Panel, Exterior (white & Black) |
|
- | |||||
| 25 | 755371 | Panel, Exterior (almond & Harvest Gold) |
|
- | |||||
| 25 | 758584 | Panel, Exterior (toast & Platinum) |
|
- | |||||
| 26 | 758449 | Grille (item 39 Included) |
|
- | |||||
| 27 | WP90767 | Screw, 8-32 X 3/8 (Replaces: 681167) |
|
Immediately | $ 7.43 | ||||
| 28 | 593577 | Connector, Hose |
|
- | |||||
| 29 | W11420408 | Scoop (Replaces: 585158) |
|
$ 25.75 | |||||
| 30 | 680811 | Screw, 10-32 X 3/8 |
|
- | |||||
| 31 | 757611 | Insert, Handle |
|
- | |||||
| 32 | 587960 | Strip, Gasket |
|
- | |||||
| 33 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 681149) |
|
Immediately | $ 7.45 | ||||
| 34 | 681419 | Thumbscrew, 10-1/2 |
|
- | |||||
| 35 | 596715 | Well Nut (3) |
|
- | |||||
| 36 | 755677 | Trim, Door (lower) |
|
- | |||||
| 37 | 756655 | Insulation, Door |
|
- | |||||
| 38 | 681196 | Screw |
|
- | |||||
| 39 | 877402 | List, Parts |
|
- | |||||
| 39 | WP503695 | Cork Sealer (Replaces: 503695) |
|
$ 111.46 | |||||
| 39 | 758470 | Grid Assembly Complete (cubelets 3/4 X 3/4) |
|
- | |||||
| 39 | 876649 | Leg Kit |
|
- | |||||
| 39 | 702354 | Ice Deflector Kit |
|
- | |||||
| 39 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 39 | 758459 | Tech Sheet |
|
- | |||||
| 39 | 756638 | Instructions, Installation |
|
- | |||||
| 39 | 756637 | Instructions, Owner`s |
|
- | |||||
| 39 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 39 | 758453 | Overlay, Grille |
|
- | |||||
| 39 | 758469 | Grid Assembly Complete (standard Cube) |
|
- | |||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 48.61 |
