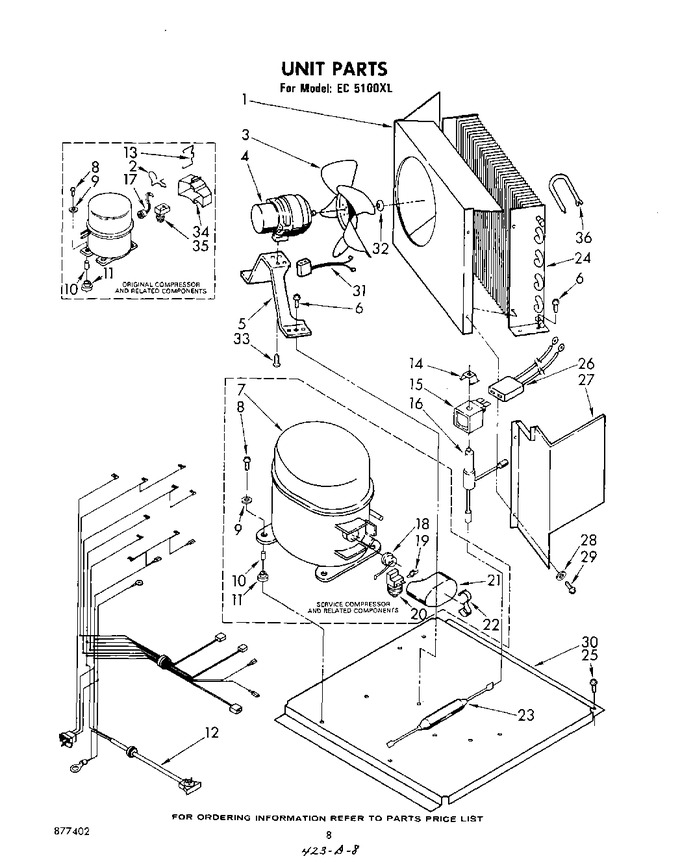

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Front Cover
02 - Cabinet, Liner And Door , Lit/optional
03 - Evaporator, Ice Cutter Grid And Pump
04 - Pump
05 - Escutcheon And Control
06 - Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 757955 | Shroud |
|
- | |||||
| 2 | 727046 | Clip (used W/original Compressor) |
|
- | |||||
| 3 | 572728 | Blade, Fan |
|
- | |||||
| 4 | 593363 | Motor, Fan |
|
- | |||||
| 5 | 560817 | Bracket |
|
- | |||||
| 6 | 681305 | Screw, 1/4-20 X 1/2 (6) |
|
- | |||||
| 7 | 485780 | Compressor |
|
- | |||||
| 8 | 680233 | Screw (4) |
|
- | |||||
| 9 | 595230 | Washer (4) |
|
- | |||||
| 10 | 585564 | Sleeve (4) |
|
- | |||||
| 11 | 596355 | Grommet (4) |
|
- | |||||
| 12 | 756657 | Harness, Cabinet |
|
- | |||||
| 13 | 727045 | Clamp (used W/original Compressor) |
|
- | |||||
| 14 | 564234 | Clamp, Coil Retainer |
|
- | |||||
| 15 | 587970 | Coil, Solenoid |
|
- | |||||
| 16 | 598086 | Valve, Body |
|
- | |||||
| 17 | 753505 | Overload (used W/original Compressor) |
|
- | |||||
| 18 | 589231 | Overload (used W/service Compressor) |
|
- | |||||
| 19 | 549086 | Spring (used W/service Compressor) |
|
- | |||||
| 20 | 549337 | Relay (used W/service Compressor) |
|
- | |||||
| 21 | 549336 | Case (used W/service Compressor) |
|
- | |||||
| 22 | 549342 | Strap, Bale (used W/service Compressor) |
|
- | |||||
| 23 | W10843121 | Drier (Replaces: 755649) |
|
Immediately | $ 51.42 | ||||
| 24 | 756299 | Condenser |
|
- | |||||
| 25 | 680811 | Screw, |
|
- | |||||
| 26 | 587971 | Harness, Coil |
|
- | |||||
| 27 | 593519 | Deflector, Front |
|
- | |||||
| 28 | 595385 | Washer |
|
- | |||||
| 29 | WP90767 | Screw (Replaces: 681167) |
|
Immediately | $ 7.43 | ||||
| 30 | 756345 | Base, Unit |
|
- | |||||
| 31 | 585219 | Plug, Fan Motor |
|
- | |||||
| 32 | 681650 | Washer, Conical (included With Fan Motor) |
|
- | |||||
| 33 | 681656 | Screw, 8-36 X 1/2 (included With Fan Motor) |
|
- | |||||
| 34 | 727044 | Cover, Terminal (used W/original Compressor) |
|
- | |||||
| 35 | 753316 | Relay, Start (used W/original Compressor) |
|
- | |||||
| 36 | 756298 | Accumulator |
|
- |
