View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts

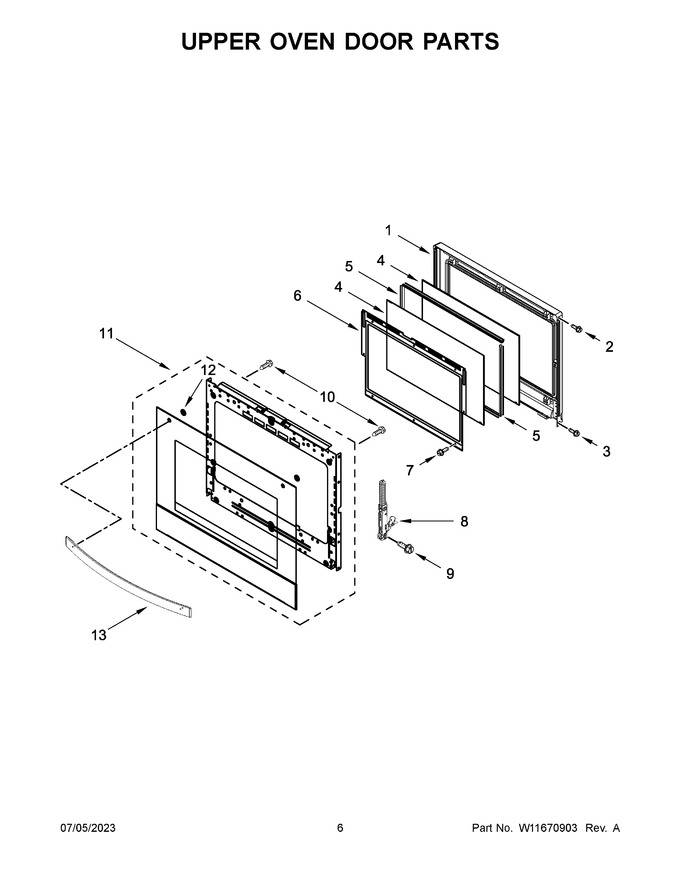

04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11768649 | Liner Assembly (Replaces: W11302587) |
|
Immediately | $ 273.43 | ||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 13.29 | |||||
| 4 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
Immediately | $ 222.94 | ||||
| 5 | W11736671 | Spacer, Air Divider (Replaces: W11302730) |
|
Immediately | $ 64.88 | ||||
| 6 | W11598182 | Retainer, Air Divider Glass (Replaces: W11174095) |
|
Immediately | $ 73.38 | ||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11665208 | Hinge, Door (left) (Replaces: W11633416) |
|
Immediately | $ 127.43 | ||||
| 9 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.36 | ||||
| 10 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 13.28 | ||||
| 11 | W11654056 | Door Assembly (stainless) (Replaces: W11499218) |
|
Immediately | $ 602.51 | ||||
| 12 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 | ||||
| 13 | W11648756 | Handle Assembly (stainless) (Replaces: W11532517) |
|
Immediately | $ 104.18 | ||||
| 11A | W11670525 | Door Assembly (black Stainless) (Replaces: W11634524) |
|
- | |||||
| 13A | W11665210 | Handle Assembly (black Stainless) (Replaces: W11548014) |
|
- | |||||
| 8A | W11665209 | Hinge, Door (right) (Replaces: W11633417) |
|
Immediately | $ 123.98 |
