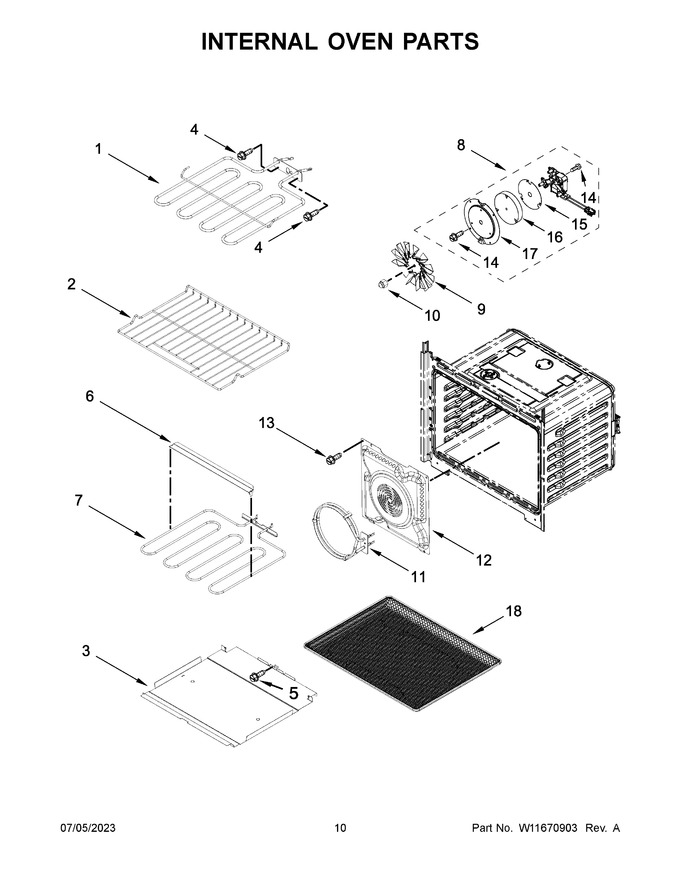

06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11617232 | Element, Broil (Replaces: W11238160) |
|
Immediately | $ 118.24 | ||||
| 2 | W11218798 | Rack, Oven (Replaces: W11122597) |
|
Immediately | $ 322.52 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 176.25 | |||||
| 4 | 7101P43460 | Screw |
|
- | |||||
| 5 | 7101P42660 | Screw |
|
- | |||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 42.72 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W11292248) |
|
Immediately | $ 131.81 | ||||
| 8 | W11617227 | Convect Motor Assembly (Replaces: W11398058) |
|
Immediately | $ 239.40 | ||||
| 9 | W11548753 | Blade, Fan (Replaces: W11425715) |
|
Immediately | $ 141.87 | ||||
| 10 | W11548755 | Nut, Acorn (lh) (Replaces: W11433702) |
|
$ 13.84 | |||||
| 11 | WPW10260248 | Ring, Element (Replaces: W10260248) |
|
$ 278.70 | |||||
| 12 | W10359278 | Baffle, Convection |
|
$ 224.30 | |||||
| 13 | WP74003976 | Screw (Replaces: W10906658) |
|
$ 6.80 | |||||
| 14 | W10850807 | Screw (Replaces: W10720084) |
|
$ 6.99 | |||||
| 15 | W11602629 | Plate, Convect Motor (Replaces: W11251715) |
|
- | |||||
| 16 | W11706806 | Insulation, Convect Motor (Replaces: W11251716) |
|
- | |||||
| 17 | W11617229 | Cover, Convect Plate (Replaces: W11398057) |
|
- | |||||
| 18 | W11692811 | Airfry Basket Kit (Replaces: W11629505) |
|
Immediately | $ 105.92 |
