SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts

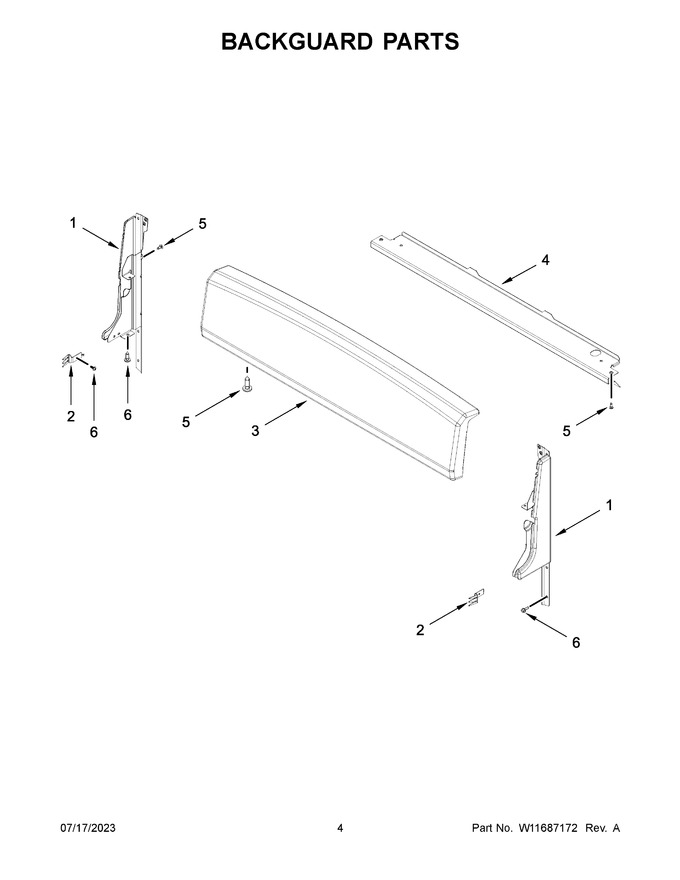

03 - Backguard Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Oven And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10873109		Endcap (left Hand) (black)		Appelez-nous	-
2	W10535815		Bracket, Rear		Appelez-nous	-
3	W11688796		Backguard (stainless)   (Replaces: W11647489)		Appelez-nous	-
4	W10535746		Bracket, Console Mount		Appelez-nous	-
5	WP98008545		Screw (black)   (Replaces: 98008545)				$ 16.74
6	W10837731		Screw   (Replaces: W10493726)				$ 7.47
1A	W10873107		Endcap (right Hand) (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
